ARC Filtration System Ltd products

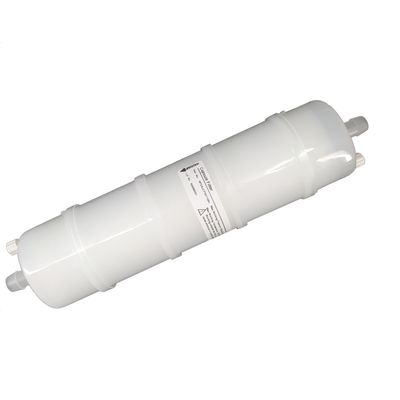

ARC - Casuple filter

Capsule Filter is disposable filters,free of adhesives binders and other chemicals. Available with a wide range of filter medias for options to meet various filtration requirements ldeal for small batch prefitration and final fiitration of liquids or gas in laboratory.

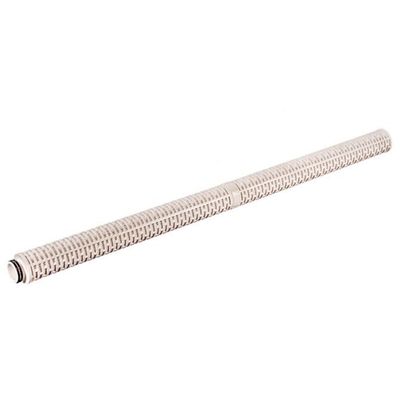

ARC - Absolute PP Cartridge Filter

DAP the all polypropylene structure provide a wide range of applications and cost effective. The extended pleated polypropylene media area provide high flow rates low pressure drop and increased dirt holding capacity.

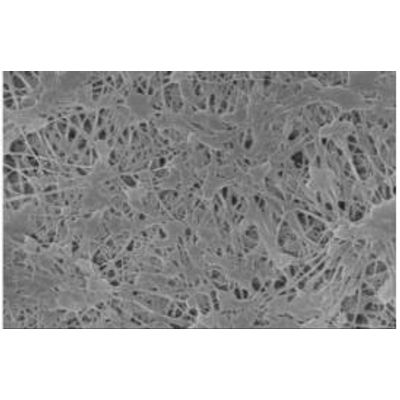

ARC - Flat MCE Membrane

MCE flat membranes are made from a mixture of cellulose nitrate and cellulose acetate, which can retain microorganisms and particles from fluids. They are widely used in aqueous solution sterile filtration, aqueous solution clarification, particle collection and analysis, microbial detection, air monitoring, mobile phase (aqueous phase) filtration for HPLC, etc.

ARC - Flat Nitrocellulose (NC) Membranes

NC series of backed nitrocellulose membranes are specially designed for lateral flow immunoassays. It cast the cellulose nitrate solution on the clear polyester backing. It has excellent mechanical strength that will perfectly fit all diagnostic manufacturer production needs.

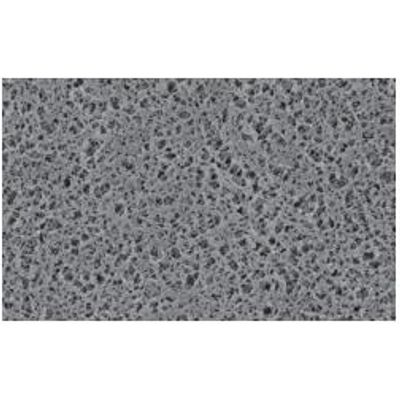

ARC - Flat PES Membranes

PES membrane is natural hydrophilic, good wettability and asymmetric pore structure, so it has super high water throughput. PES membranes are known for their thermal stability, durability, and resistance to acidic and alkaline solutions. It shows very low protein adsorption and low extractable levels.

ARC - Flat NYLON Membranes

The nylon membrane is made of polyamide 66. It is hydrophilic in nature with good chemical compatibility. It can filter all water-based liquids and most organic solutions such as alcohols, hydrocarbons, ethers, esters, ketones, etc. The nylon membrane is widely used for sample collection, pre-filtration, sample testing and removal of particles, bacteria and micro-organisms. It reinforced nylon membrane meets pharmaceutical grade requirements. PET is used as a support layer to increase mechanical strength. It has very low extractability and provides excellent flow diffusion.

ARC - Flat PVDF Membrane

Hydrophilic PVDF membranes are widely used for the filtration of culture media and other protein solutions due to their very low protein adsorption, high water flux, and broad chemical compatibility. Hydrophilic PVDF membranes have excellent heat and oxygen resistance and are also used for solvent filtration and chromatographic sample preparation.

ARC - Flat PTFE Membranes

Naturally hydrophobic PTFE membrane with excellent porosity, high flow rate;Absolute rating, filtration efficiency>99.99%, up to 0.1 micron in gas sterile filtration;Low pressure drop and long service life; Wide chemical compatibility, resistant to strong alkali, acids, aggressive gases and solvents;High temperature endurance performance;

ARC - Drll Max Flow Filter

Drll Max series Filter cartridges are manufactured exact and are used in the most demanding industrial environments.Our filter cartridges are manufactured in a range of length options and micron ratings. This filters media has a fixed pore construction of high quality fibers.The combination of surface and depth filtration help provide a long service life. With the use of premium quality filter fabrics,our pleated filter cartridges have superior flow characteristics with a very low pressure drop compared to depth media of similar micron rating.The advantages of this filter is that it has a smaller filter vessel, smaller footprint and lower capital investments.Long cartridge lifetime means lower operational costs, less work changing the cartridges and less waste.Our thermal welded construction provides safety against high temperature oily waters solvents acid, and diesel fuels.

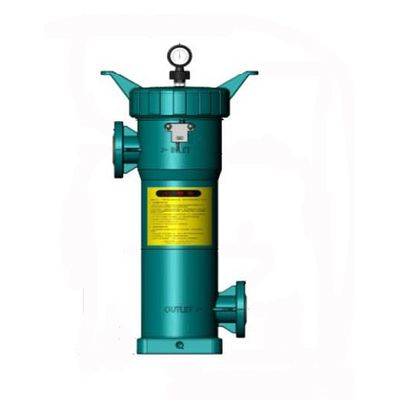

ARC - PP Bag Filter Housing

PP Bag filter housing,from one bag to four bags, the filter bag sizes include #1,#2,#3,#4. High performance for the chemicals and the work pressure reach to 10bar.
