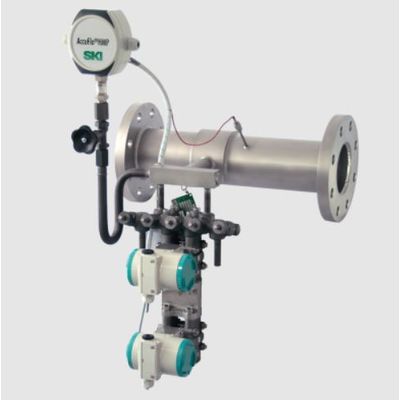

AccuFlo - Model HMP -Certified High Accuracy Mass Flow Meter

• Accurate and traceable measurements outside of the jurisdiction of the measurement instrument directive are required (e.g. steam measurements),
• Very high measurement accuracy is required ,
• Very short straight pipe runs are available,
• A „Plug-and-Play“ solution is preferred,
• Reliable measurement results are required even under harsh operating conditions,
• The measurement needs to be insensitive against pipe vibrations,

Measured quantity: Flow (as volume flow, mass flow, standardized volume flow, transferred heat or velocity)

Absolute Pressure

Temperature

Measured fluid: Natural Gas

Technical Gases (Air, Nitrogen, others, water saturated or corrosive,)

low viscosity liquids (also nonconductive)

Steam (saturated and superheated)

Temperature range: Standard: −50 … 450 °C, optional up to 500 °C

Pressure range: Standard: PN10 to PN

100 (AISI Class 150 to AISI Class 600)

Higher pressure ratings upon request

Diameter range: DN 25 to DN 300

1" to 12"

(larger diameters upon request)

Required straight inlet and outlet pipe runs: for 90° elbows: 2×D inlet, 1×D outlet

Material: Flow sensor: 1.4404 (AISI 316L) or 1.5415 (ASTM A335 Grade P1/F1)

Pipe section: 1.4404 (AISI 316L) or 1.5415 (ASTM A182 / A335 Grade P1/F1)

Measurement range: Standard: 1:15

Optional 1:50 (depending on application)

Error limit: Typically ±0,3 % of mass flow in calibrated range for gases and liquids

 Typically ±0,5 % of mass flow in calibrated range for steam

Flow computer: For panel or wall mounting

TFT color display with touch screen

2 analog outputs (0)4 ... 20 mA

3 switching outputs (freely selectable function incl. alarm)

Fieldbuses (Modbus; Profibus/Profinet in preparation)

Auxiliary power 90 ... 250 V AC or 18 ... 36 V DC
