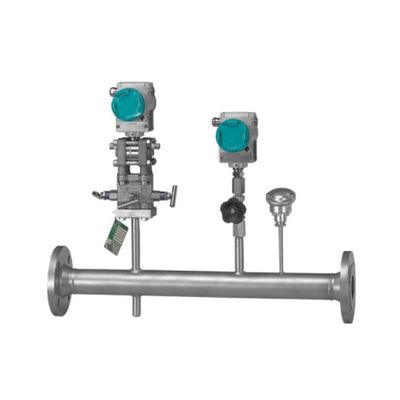

AccuFlo - Model LPD -Mass Flow Meter

• Accurate and traceable measurements outside of the jurisdiction of the measurement instrument directive are required (e.g. steam measurements),
• A „Plug-and-Play“ solution is preferred,
• Reliable measurement results are required even under harsh operating conditions,
• The measurement needs to withstand pipe vibrations,
• Minimal permanent pressure losses are required due to technological or economical reasons.

Measured quantity: Flow (as volume flow, mass flow, standardized volume flow, transferred heat or velocity) Absolute Pressure Temperature

Measured fluid: Gases (with dust, water saturated, corrosive) Liquids (low viscosity) Steam (saturated and superheated)

Temperature range: Standard: −50 … 450 °C, optional up to 500 °C

Pressure range: Standard: PN10 to PN 100 (AISI Class 150 to AISI Class 600) Higher pressure ratings upon request

Diameter range: DN 25 to DN 300 1" to 12" (larger diameters upon request)

Required straight inlet and outlet pipe runs: Standard: 7xD inlet, 3xD outlet (partial straight inlet and outlet pipe run are already included in the device)

Material: Flow sensor: 1.4404 (AISI 316L) or 1.5415 (ASTM A335 Grade P1/F1) Pipe section: 1.0345 (P235GH, ASTM A 105/106), 1.4404 (AISI 316L) or 1.5415 (ASTM A335/A 182 Grade P1/F1)

Measurement range: 1:7, optional 1:40

Error limit: ±0,6 % of mass flow in the calibrated range

Zero point error: ±0,07 % of full scale in the calibrated range

Flow computer: For panel or wall mounting

TFT color display with touch screen

2 analog outputs (0)4 ... 20 mA

3 switching outputs (freely selectable function incl. alarm)

Fieldbuses (Modbus; Profibus/Profinet in preparation)

Auxiliary power 90 ... 250 V AC or 18 ... 36 V DC

• Technical Gases
• Steam/Heat Quantities
• Heat Transfer Fluids
• Water
