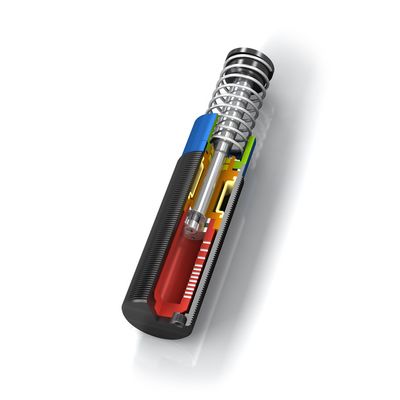

ACE - Model SCS33EU -Safety Shock Absorber
The Safety Shock Absorber SCS33 is an industrial-grade shock absorber designed for high energy absorption applications. It features a self-adjusting or optimized curve and handles energy absorption ranging from 310 Nm to 950 Nm per stroke, with stroke lengths of 23.2 mm to 48.6 mm. Its operating speed varies from 0.02 m/s to 5 m/s, with alternative speeds available upon request. The unit is functional at temperatures between -12°C and +66°C. Constructed with a steel tenifer-hardened body, hard-chromed steel piston rod, hardened and corrosion-resistant coated impact head, and a return spring that is either zinc plated or plastic coated. The damping medium utilized is Automatic Transmission Fluid (ATF). The device integrates a fixed stop and can be installed in any orientation. It is suited for emergency stop systems in manufacturing, aerospace applications, and linear motor-driven cross slide guides.
Effective emergency stop: The ACE safety shock absorbers in the SCS33 to SCS64 product family are based on the innovative technology of the successful industrial shock absorbers in the MAGNUM series. Like these, they are maintenance-free and ready to install.
Thanks to a characteristic curve optimized for each application, the energy absorption of these hydraulic machine elements per stroke can be more than doubled compared to the ACE industrial shock absorbers in the MAGNUM series. Users benefit from excellent value for money and service lives of up to 1,000 load cycles. Their compact design, available in sizes M33x1.5 to M64x2, makes them easy to integrate into existing applications.
These slim, high-performance safety shock absorbers are designed exclusively for emergency stop tasks. They are versatile and suitable for applications such as gantry and conveyor systems, machining centers, and pick-and-place machines.
|
Energy absorption 310 Nm/stroke to 950 Nm/stroke Stroke 23.2 mm to 48.6 mm Impact speed 0.02 m/s to 5 m/s. Different speeds available upon request. Permissible temperature range: -12 °C to +66 °C. Other temperature ranges available upon request. Installation position optional Fixed stop integrated Material Outer body: Tenifer hardened steel; Piston rod: Hard chrome-plated steel; Impact head: Hardened steel with corrosion-resistant coating; Return spring: Galvanized or plastic-coated steel; Accessories: Corrosion-resistant coated steel Damping medium Automatic Transmission Fluid (ATF) |
