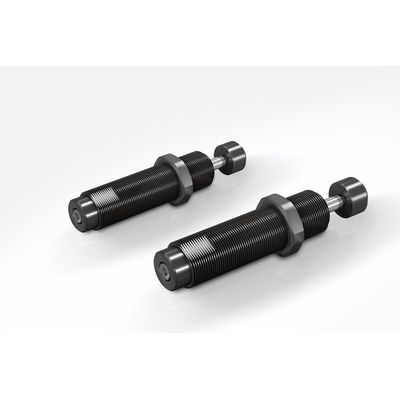

The ACE Miniature Shock Absorbers MC5 to MC75 series are precision-engineered components designed for miniaturized applications, specializing in self-adjusting energy absorption with capacities of 0.68 Nm per stroke and a stroke length of 4 mm. These absorbers accommodate impact velocities ranging from 0.15 m/s to 4 m/s and operate within a temperature range of -10 °C to +66 °C, providing versatility across various environments. The units feature a corrosion-resistant coated steel body with a stainless steel, hardened piston rod. The shock absorbers integrate a built-in stop and employ oil as a damping medium, ensuring temperature stability. Customization options include increased corrosion protection and configurations without an impact head. The shock absorbers are intended for use in applications like linear pneumatic modules and require consideration of environmental factors that could affect component seals. ACE advises against painting the units due to heat dissipation requirements.

Ideal for compact, efficient designs: The product family MC5 to MC75 impresses users with their reduced dimensions and their very short overall lengths and low resetting forces after braking. The outer body of each damper, produced from one solid piece, are filled with temperature stable oil, offer a continuous thread incl. a supplied lock nut and also have an integrated positive stop. These hydraulic machine elements from ACE, are ready for immediate installation and are maintenance-free. A comprehensive range of energy absorption with a wide range of effective weight potential are further benefits in these minature units. These miniature shock absorbers are perfectly suited to use in applications such as mechanical engineering, medical and electro-technology and robotics.

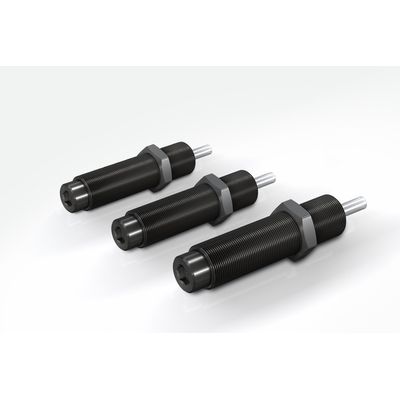

Exceptionally high endurance and with the lowest resetting force. Self-Compensating, Rolling Diaphragm Technology, Energy capacity 20 Nm/Cycle to 136 Nm/Cycle, Stroke 12 mm to 25 mm. Tried-and-tested and durable: Due to a hermetically sealed rolling diaphragm in each absorber, the MC150 to MC600 product family is suitable for an exceptional high lifetime of use with up to 25 million cycles. The rolling diaphragm technology perfected by ACE ensures complete separation of the damping fluid from the surrounding air. This makes direct installation in a pressure chamber e.g. as end stop damping in pneumatic cylinders up to approx. 7 bar possible.

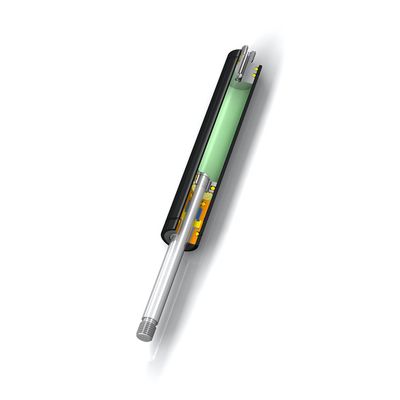

Universal and tailor made: ACE industrial gas push type springs of the NEWTONLINE family offer perfect support of muscle power with forces from 10 N to 13,000 N with body diameter of 8 mm to 70 mm. With their high quality features the NEWTONLINE gas springs form the industry standard. These durable and sealed systems are ready for installation, maintenance-free and filled with pressurised nitrogen gas.

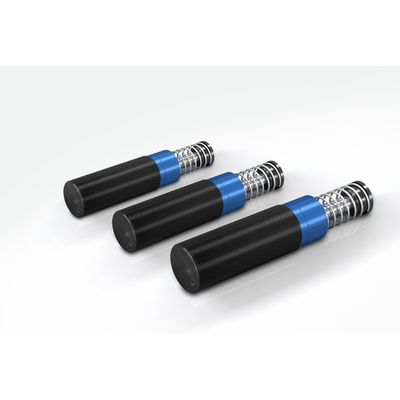

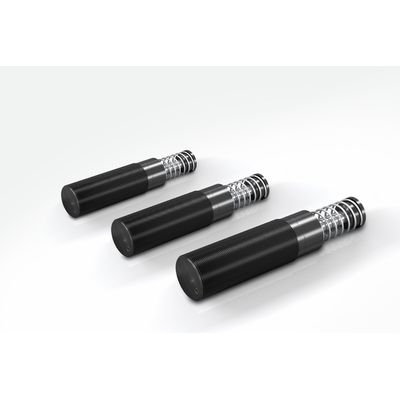

The MC33 to MC64 series of industrial shock absorbers by ACE Stoßdämpfer GmbH offer high energy absorption up to 5,650 Nm per stroke with stroke lengths ranging from 23.1 mm to 150 mm. These self-adjusting shock absorbers are designed to handle velocities between 0.15 m/s and 5 m/s and can operate in temperatures from -12 °C to +66 °C, with custom temperature ranges available upon request. The absorbers can be mounted in various orientations and feature an integrated hard stop. Constructed with tenifer-hardened steel bodies and hard-chromed steel pistons, they ensure durability and resistance to corrosion. They employ automatic transmission fluid as a damping medium, suitable for applications in linear slides, rotary tables, handling modules, and more. Custom options, such as special oils, enhanced corrosion protection, and nickel plating, are available. Noise reduction accessories with special impact heads can decrease noise levels by 3 dB to 7 dB, enhancing operational environments.

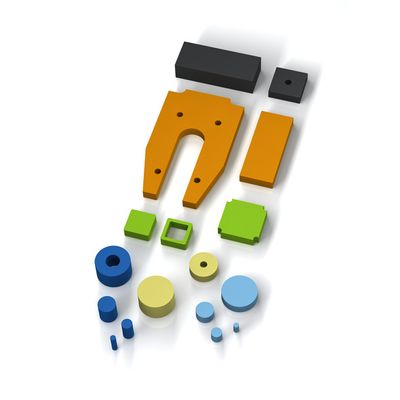

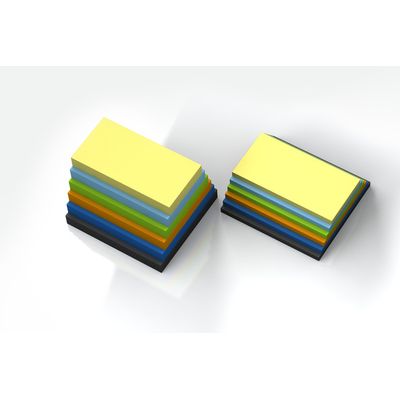

Universally applicable and custom manufactured: ACE supplies cushioning pads in the SL-170 to SL-275 range under its brand name SLAB. These universally applicable absorbers are made from highly cushionable elastic PUR materials. The 12.5 mm or 25 mm thick plates can be supplied with a density of 170 kg/m³ to 275 kg/m³ provide made-to-measure vibration isolation. They can be combined as isolation packages and custom-made to suit requirements, using water-jet cutting. Other made-to-measure options from ACE include on-site vibration measurement and product selection, a special sizing software package, and cost-neutral design.

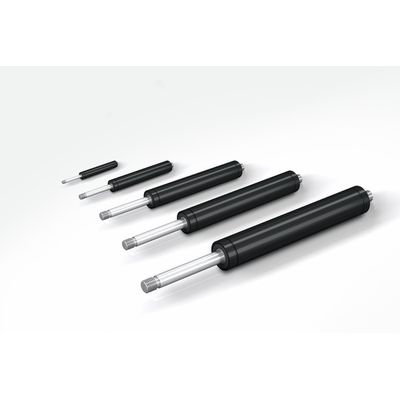

Universal, as if tailor-made: The ACE industrial gas springs of the NEWTONLINE family offer perfect support for muscle power with forces from 10 N to 13,000 N and body diameters from 8 mm to 70 mm. With their high-quality features, NEWTONLINE gas springs set the industry standard. These ready-to-install, maintenance-free, self-contained systems are durable and filled with pressurized nitrogen gas.

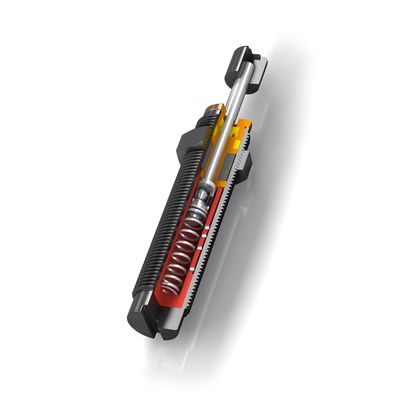

Added safety with accumulator technology: The larger `soft contact` models from the SC²300 to SC²650 are available with up to three times the energy absorption compaired to similar sizes of standard shock absorbers SC190 to SC925, due to the ACE piston tube speciality. Furthermore, the membrane accumulator serves as a compensation element for the oil displaced in the shock absorber and replaces the standard use of absorber materials. This increases process safety even further.

Effective emergency stop: The ACE safety shock absorbers from the SCS33 to SCS64 product family are based on the innovative technology of the successful industrial shock absorbers from the MAGNUM range. They are also maintenance-free and ready-to-install.

ACE Stoßdämpfer GmbH specializes in industrial damping solutions, offering a wide range of vibration control products. Their SLAB series, specifically the SLAB 170 to SLAB 275 vibration-isolating plates, are engineered to mitigate vibrations in industrial settings. These plates have a customizable frequency range from 12 Hz to 50 Hz, making them suitable for various applications like decoupling pumps and transformers. Constructed from mixed-cell PUR elastomer, these plates are resistant to ozone and UV radiation, with an operational temperature range of -30°C to +70°C. Standard dimensions include widths up to 1,500 mm, lengths up to 5,000 mm, and a thickness of 12.5 mm. The plates can be tailored through waterjet cutting, partitioning, and other techniques for specific installation requirements. Their material properties ensure durability and effectiveness in severe environments.
