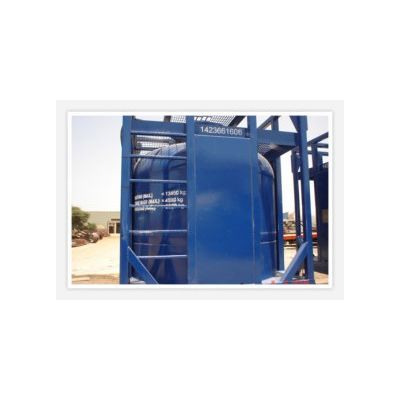

Acid Transport Tank

From

0

The Acid transport tank is designed to store acid or corrosive product, etc.. For oilfield use. It can be used for the safe transport and storage. The fill & discharge lines are easy accessible. Manhole is located at top for easy access. The interior is designed to allow a high resistance to corrosion; the tank is equipped with extra-thickness of steel or rubber lining or fiberglass coating which requires minimum maintenance. The acid transport tank is equipped with ladders, walkways, handrails, etc..

General Specifications

  • Design Code: ASME Sec VIII & IMDG code Edition 2004
  • Capacity: 1000 USG-5500 USG
  • Design Pressure: 60 PSIG
  • Working Temperature: -40 Deg C to 100 Deg C
  • Design Shape: Cylindrical
  • Material test & Lifting lug MPI certification: Yes
  • 100% Radiography & 100% Dye Penetrant test: Yes

Technical Specifications

  • The Acid transport tank is designed to store 32% concentrated acid or corrosive product etc..
  • The fill, vent & discharge lines are easily accessible
  • Fabricated manholes are located at top
  • External grit blasted to SA 2.5 & epoxy paint system
  • Certification:- IMDG/DNV (Whatever required & applicable)
  • Internal lining material-(Suitable to the stored content)
  • Hydro fill tested to suit design standard
  • Spark test report will be provided for internal lining
  • All steel welded construction from SA36/SA516 Gr 70 N/equivalent steel plates

Options

  • Type: Horizontal/Vertical
  • Internal lining as per clients choice
  • Special design & equipment on request
