Acme - Model 2100 -Airfoil Rooftop Centrifugal Fan

FromAcme Engineering and Manufacturing Corporation

SHARE

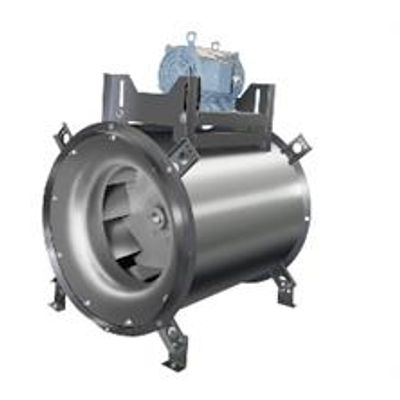

Model 2100 is a belt drive, tubular centrifugal exhauster with the motor, drives and bearings located outside the airstream. The 2100 is designed to operate in arrangement 9H (horizontal) and 9V (vertical) and available in both Class 1 and Class 2. The tubular design is furnished with mounting flanges on both ends for easy installation.

Most popular related searches

tubular centrifuge

precision balance

flush access door

centrifugal fan

duct access door

Housing

Heavy gauge, rolled steel construction and continuously welded to eliminate air leakage
Standard charcoal baked enamel with UV inhibitors
Multiple aerodynamic conversion vanes, provides rigid support for outer casing
Pre-punched flange at each end for ease of mounting
Inlet and outlet diameters shall be identical to accommodate a single duct size
Flush bolted access door for servicing
8 heavy duty, steel mounting brackets with 4 interchangeable mounting feet
Allow for rotation of the motor position to 90718072707360°
Dichromate plated, steel fasteners

Wheel

Centrifugal, backwardly inclined type with die-formed airfoil blades for maximum efficiency and quiet operation
Precision balanced for smooth trouble free operation
The dynamically balanced impellers for our products are balanced to the grade G6.3 as described in the standards:
ANSI/AMCA 204 "Balance Quality and Vibration Levels for Fans"
ISO 14694 Tans - Specifications for balance quality and vibration levels"
Charcoal baked enamel UV inhibitors

Bearings

Double-sealed unitary pillow block bearings
Rated at Lso life of 200,000 hours
2 year limited warranty
With external lube lines fittings

Shaft

Corrosion-resistant coated, steel shaft
Sized so that first critical shaft speed is at least 25% over the max operating speed

Motor

Continuous duty motors with sealed ball bearings
Motors are located outside the airstream
Adjustable motor base maintains positive belt tension

Drive Assembly

Cast iron variable pitch drives sized for 150% of fan horsepower
Static free, oil, and heat-resistant belts
