Acme Engineering and Manufacturing Corporation products

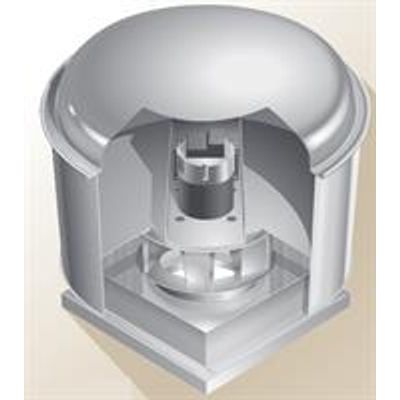

Model PV belt drive fans are centrifugal power roof ventilators designed for exhausting clean air. Capacities up to 40,608 CFM and up to 2 inch static pressure. The aerodynamic design of the PV impeller and orifice results in high air performance and low sound. Typical applications for the PV includes a wide range of commercial, institutional, and industrial facilities such as schools, office buildings, hospitals, prisons, assembly areas, and restaurants.

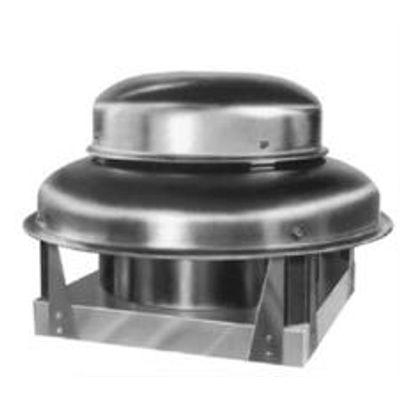

Model PRN direct drive fans are centrifugal power roof ventilators designed for exhausting clean air. Capacities up to 2770 CFM and up to 1 inch static pressure. The PRN is a downblast exhauster suitable for all types of commercial and institutional buildings such as schools, hospitals, office buildings, and retail stores.

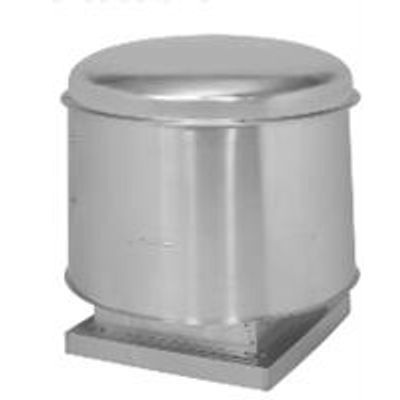

Acme`s new direct drive centrifugal downblast fan Model PVD. This exhaust fan transforms Acme`s best selling belt drive model PV into a direct drive fan that can offer improved performance ranges to meet your customers` demands. Model PVD also extends the range of the direct drive PRN downblast rooftop exhaust fans.

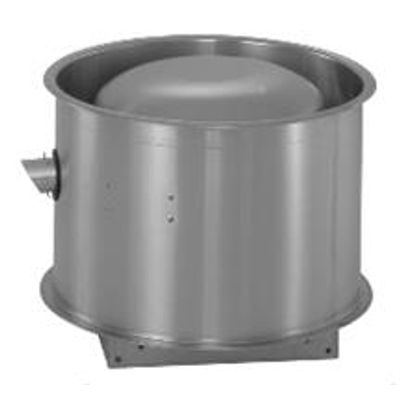

Models PNURF and PNURG (restaurant exhauster) are belt drive upblast centrifugal exhausters. Capacities up to 33.374 CFM and up to 3 inches static pressure. Models PNUHP and PNUXP are high pressure exhausters for applications up to 5 inches static pressure. The PNURF is a clean air ventilator designed for high velocity vertical discharge. Model PNURG is ideally suited for removal of grease laden exhaust found in restaurant and commercial kitchen applications. Other applications include a wide range of commercial, industrial, and institutional facilities such as schools, hospitals, prisons, and assembly areas.

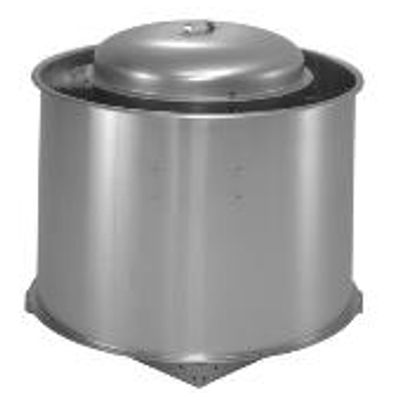

Models PDURF and PDURG (restaurant exhauster) are direct drive upblast centrifugal exhausters. Capacities up to 5.317 CFM and up to 1 1/4 inch static pressure. The PDURF is a clean air ventilator designed for high velocity vertical discharge. Model PDURG is ideally suited for removal of grease laden exhaust found in restaurant and commercial kitchen applications. Other applications include a wide range of commercial, industrial, and institutional facilities such as schools, hospitals, prisons, and assembly areas.

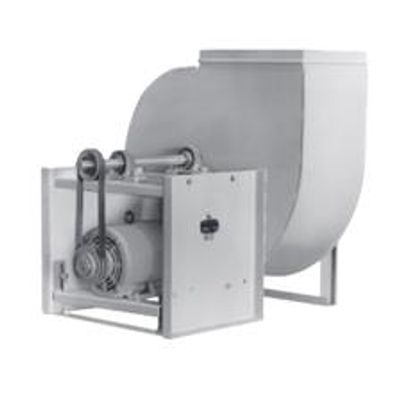

Model 3000 is a belt drive fan with a backwardly inclined centrifugal wheel and is designed for high efficiency and low sound. The 3000 utility set is a heavy duty fan with capacities up to 81,504 CFM and up to 11" static pressure. Available in Class 1 and 2 design both Clockwise CW rotation and Counterclockwise CCW rotation, and in seven discharge positions. The maximum operating temperature for the 3000 series is 300°F. The 3000 heavy duty design insures years of maintenance free operations.

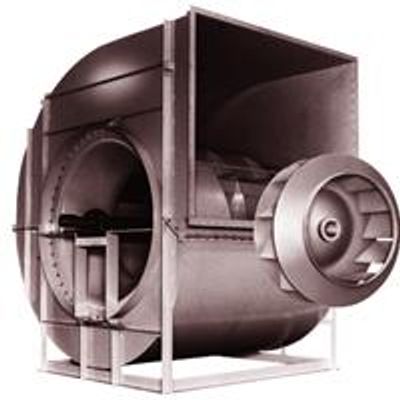

The 8100 Series Airfoil Centrifugal Fans utilize the latest design techniques to produce a quiet, highly efficient air mover. Aerodynamically designed airfoil blades and air passages allow more air to be handled with less horsepower and at a lower sound level. This fan has been designed for applications where low operating cost and quiet operation are prime considerations.

Model 2100 is a belt drive, tubular centrifugal exhauster with the motor, drives and bearings located outside the airstream. The 2100 is designed to operate in arrangement 9H (horizontal) and 9V (vertical) and available in both Class 1 and Class 2. The tubular design is furnished with mounting flanges on both ends for easy installation.

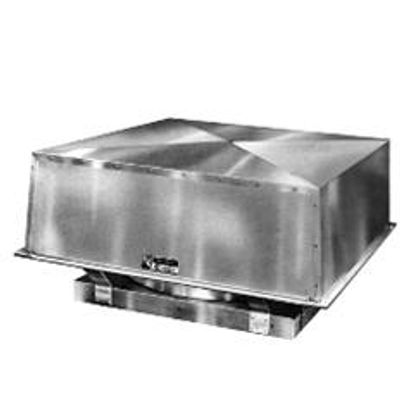

Model PL belt drive fans are downblast centrifugal power roof ventilators designed for exhausting clean air. Capacities up to 31.810 CFM and up to 1 inch static pressure. The PL is built to be a low profile exhauster. PL exhausters are suitable for all types of commercial and institutional buildings such as schools, hospitals, office buildings and retail stores.

Model PL belt drive fans are downblast centrifugal power roof ventilators designed for exhausting clean air. Capacities up to 31.810 CFM and up to 1 inch static pressure. The PL is built to be a low profile exhauster. PL exhausters are suitable for all types of commercial and institutional buildings such as schools, hospitals, office buildings and retail stores.
