CAE - Acoustic Camera - Customized Microphone Arrays

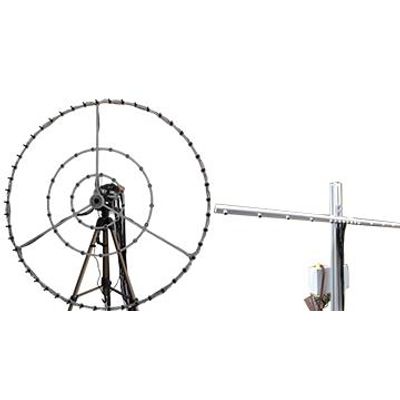

You already have a specific concept for your array? We implement your idea exactly how you want it. Our specialists can certainly advise you so that your custom microphone array meets the application needs precisely. There are no limits for your acoustic camera. Not only is it possible to create a mobile solution but integration in walls or whole rooms is no problem. Choose between analog and digital technology and determine the required size, form and channel number for your application together with our experts.
- Size of the acoustic camera: according your needs
- Specifications of the acoustic camera: according your needs
- Number of microphones of the acoustic camera: according your needs
- Recommended frequency range for the acoustic camera: according your needs
- Production material of the acoustic camera: according your needs
- Weight of the acoustic camera: according your needs
We are supporting a lot of different microphones e.g.:
- CAE microphones
- G.R.A.S.
- PCB
- B&K
- ...

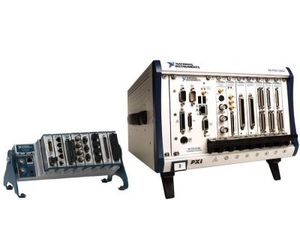

We are supporting almost every National Instruments Chassis. The most common used hardware are PXI and cDAQ-Chassis.
The data acquistion system is a National Instruments embedded-controller with real-time operating system and FPGA.
- Number of channels: 40
- Samplerate per channel: 48 kS/s
- Resolution: 24 bit
- Synchronous sampling: Yes
- Interface to PC: Ethernet
- Fanless: Yes
- Additional inputs: Trigger, Tacho (RPM)
- Powersupply: 12 V
- Consumption: < 7 W
- Dimension: 23 cm x 18,5 cm x 5,8 cm
- Weight: 2 kg
We support all National Instruments DSA-Cards (Dynamic Signal Acquisition).
- NI PXI 4472B with 8 channels, voltage input or IEPE, 102,4 KHz per channel, ±10V AV or DC, 110 dB dynamic
- NI PXI 4496 with 16 channels, voltage input or IEPE, 204,8 KHz per channel, ±1V or ± 10V AV, 113 dB dynamic
- NI PXI 446x with 16 channels, voltage input or IEPE, 204,8 KHz per channel
- NI 9234 with 4 channels, ±5 V, 51,2 kS/s per channel, 24-bit-IEP
- NI 9239 with 4 channels, ±10 V, 50 kS/s per channel, 24-bit-IEP
- ...
The Noise Inspector software is the standard solution for visualizing sound sources. The application-oriented software guides you from data acquistion to analysis to saving and reporting of acoustic data.
- Online- and offline analysis
- Acoustic-photo und acoustic-video
- A lot of HD algorithms: Beamforming, EVOB, CLEAN SC, MUSIC, Capon, DAMAS, Real 3D Beamforming,...
- Frequency analysis and time-frequency analysis (sonogram)
- Acoustic weighting (A, B, C) or linear presentation
- Open interface to Matlab for own algorithms
- Easy export of terce/octave, measurement, acoustic-photo and acoustic-video
- Playback of local sound
The following accessories are available for this system:
- Calibrator adapter
- Battery
- Notebook or Tablet
- Flight case
- Windshields
