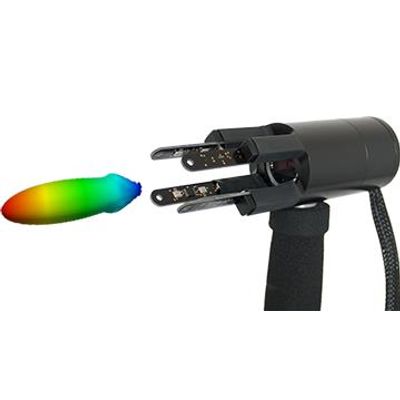

CAE - Acoustic Compass - Acoustic 3D Intensity Probe
The 3D acoustic intensity probe is for localization of sound sources from 40 Hz. The compass consists of 28 acoustic intensity probes and shows in a 3D display via 3D vectors the direction of the noise sources. Due to the small size of the acoustic 3D intensity probe and the online 3D intensity analysis it is a perfect trouble shooter.
- size of the acoustic camera: 50 mm
- specifications of the acoustic camera: <33 dB to 120 dB
- number of microphones of the acoustic camera: 8 MEMS-microphones build 28 intensity probes, 24 bit resolution, Samplerate 48 kHz, frequencyrange 20 Hz - 20 kHz
- recommend frequency range of the acoustic camera: from 40 Hz
- material of the acoustic camera: fibre-reinforced polymer
- weight of the acoustic camera: 0,6 kg
The data acquistion system is a National Instruments embedded-controller with real-time operating system and FPGA.
- Number of channels: 40
- Samplerate per channel: 48 kS/s
- Resolution: 24 bit
- Synchronous sampling: Yes
- Interface to PC: Ethernet
- Fanless: Yes
- Additional inputs: Trigger, Tacho (RPM)
- Powersupply: 12 V
- Consumption: < 7 W
- Dimension: 23 cm x 18,5 cm x 5,8 cm
- Weight: 2 kg

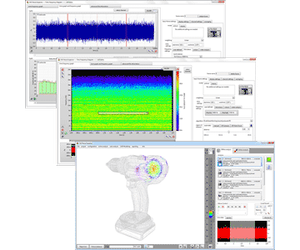

The Noise Inspector software is the standard solution for visualizing sound sources. The application-oriented software guides you from data acquistion to analysis to saving and reporting of acoustic data.
- Online- and offline analysis
- Acoustic-photo und acoustic-video
- A lot of HD algorithms: Beamforming, EVOB, CLEAN SC, MUSIC, Capon, DAMAS, Real 3D Beamforming,...
- Frequency analysis and time-frequency analysis (sonogram)
- Acoustic weighting (A, B, C) or linear presentation
- Open interface to Matlab for own algorithms
- Easy export of terce/octave, measurement, acoustic-photo and acoustic-video
- Playback of local sound
Every acoustic camera is expandable through additional arrays for opening up new fields of application.
- Expansion with Bionic XS-56 arms (application from 800 Hz) → Go to Bionic XS-56
- Expansion with Bionic S-112 arms (application beamforming from 400 Hz; holography from <40 Hz) → Go to Bionic S-112
- Expansion with Bionic M-112 arms (application beamforming from 250 Hz; holography from <40 Hz) → Go to Bionic M-112
- Expansion with Bionic L-112 arms (application from 150 Hz) → Go to Bionic L-112
- 3D Beamfoming System through a 3D-array and the 3D Beamforming algorithm → Go to 3D Array
- Expansion with an Intensity Array (application from 40 Hz) → Go to Intensity Array
- Calibrator adapter
- Battery
- Notebook or Tablet
- Flight case
- Windshields
The Breakout Box extends the data acquisition system for connecting ICP/IEPE and analoge sensors the Frontend.
- Number of channels: 8 to 40
- Sensor interface: ICP, IEPE and analog sensors single switchable
- Input voltage: ± 5 V
- Samplerate per channel: 48 kS/s
- Resolution: 24 bit
- Synchronous sampling: Yes
- Interface: Connection to I²S Frontend
- Fanless: Yes
- Powersupply: 12 V
- Consumption: < 1 W
- Dimension: 14 cm x 7,5 cm x 5 cm
- Weight: 0,5 kg
