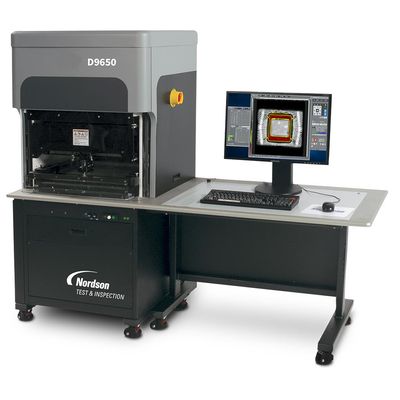

Nordson - Model AMI D9650 -Acoustic Microscope Machine

Specifically designed to serve as a general purpose tool for failure analysis, process development, material characterization and low volume production inspection, the capabilities of the D9650 are truly unmatched.

Representing the latest in C-SAM acoustic micro imaging, the D9650 delivers the unrivaled accuracy and robustness that you would expect from Nordson Test & Inspection instruments, plus improved electronics and software that raises the performance level for laboratory acoustic microscopes.

Features

• PolyGate technology with Multi-Gate and Probing-Gate functions capable of single and multi-focus imaging.
• Set up to 100 gates per channel.
• Windows® 10 Ultimate for multi-language and 64 bit capabilities.
• Precise scanning with tower mounted scan reference platform and sample fixture.
• Optional Digital Image Analysis (DIA), water recirculation, Waterfall transducer and inline temperature control.

• Mechanical Scan Area : 314 mm x 314 mm
• X-Y Accuracy : + or - 0.5 um
• Motors :
• X-Axis Highspeed linear motor
• Y-Axis stepper
• Z-Axis stepper
• Electrical-Pulse Receiver : Optimized for Transducers
• 5 MHz to 230 MHz
• 95 dB Gain - 0.5 dB steps
• Digitizer : 1 GSPS @ 8 bits LSNB 1
• Digitizer Gating : 1 ns to 10,000 ns
• Operating System : Windows 10, Sonolytics 2
• Voltage :
• 90 VAC to 250 VAC
• 50/60 Hz single
• 15-amp circuit 120 VAC
