ACS - Model M9171 -Longitudinal Wave Phased Array Transducer
Longitudinal wave ultrasonic phased array transducer for weld joint testing. The ultrasonic phased array transducer M9170 is intended to perform ultrasonic flaw detection in metallic and composite objects by transmitting and receiving ultrasonic longitudinal waves. The transducer can be used as a part of TFM Phased Array ultrasonic flaw detectors.
Most popular related searches
ultrasonic phased array transducer
ultrasonic flaw detection
phased array flaw detection
ultrasonic transducer
flaw detection
array detector
ultrasonic testing
metal detection
The transducer can be driven by the following ACS instruments:
- Type of transducer: angle-beam, piezoelectric
- Type of generated wave mode: shear
- Number of elements: 16
- Pitch size: 1.75 mm

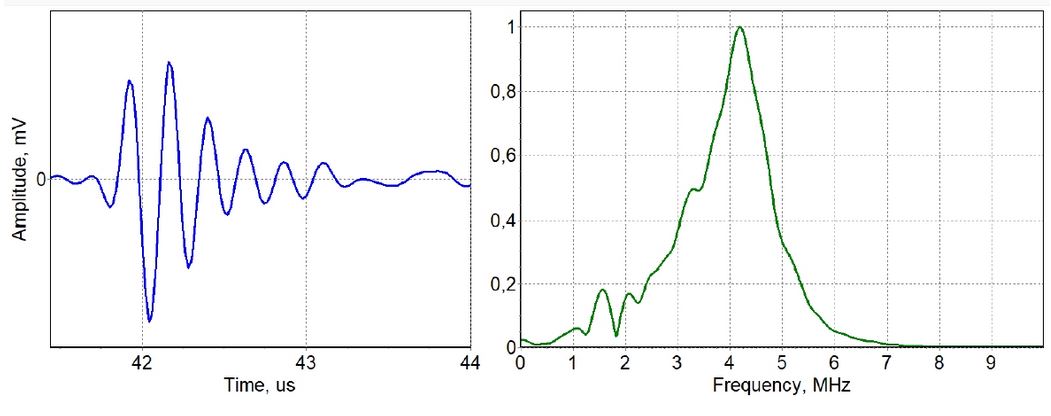

- Nominal frequency: 4 MHz
- Nominal refracted beam angle in steel: 55°
- Nominal operation angle range: 30...80°
- Piezo-element electric capacity: 1500 ± 150 pF
- Maximum excitation pulse voltage, V: ± 100 V
- Operating temperature range: –20...+45°C
- Dimensions: 32 × 18 × 44 mm
- Weight with cable: 170 gr
