Aereco - Model DX Hub -Activate Air Supply Distribution Box
If the units used for exhaust are the same as those used in Aereco’s mechanical exhaust ventilation system, the airflow supply in the DX System "Excellence" is controlled by a specific device: the DX Hub distribution box. Using up to 5 or 6 demand controlled dampers connected to supply units, it allocates the airflow in each room according to the data received by CO2 or presence sensors located in bedrooms and in the living room. An additional valve* is integrated to ensure the balance between total exhaust and supply air. Both Hub 5 and Hub 6 are compatible with the Excellence version of DXA and DXR heat recovery units.
- DynamiX® Technology: ensures a silent system and optimal indoor air quality through room-by-room demand control.
- Noise attenuation through low pressure operation (DX Hub 5) and built in silencers (DX Hub 6).
- Easy installation thanks to multiple positioning.
- Easy maintenance with many unscrewable metal parts.
- High-quality manufacture with main parts made of metal.

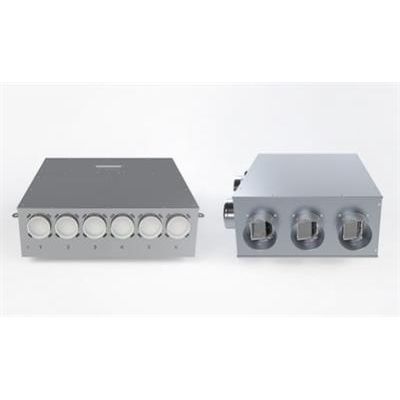

Two products complete the DX Hub range, both are compatible to DXR and DXA. The DX Hub 5, with its outlets of D100 mm, fits perfectly for galvanized ductwork, while the DX Hub 6, with its outlets of D75 mm, is more dedicated to installation with semi-flexible ducts. *specific to DX Hub 5
The DX Hub is the pillar of the DynamiX® Technology. With a very accurate and smart management of motorized dampers and with acoustic silencers (DX Hub 6), it ensures a soundless operation by the DX System.
Thanks to the multiple localization of their inlets, it has never been so easy to install a heat recovery ventilation system. Whatever the heat recovery unit, the DX Hubs can be installed in a vertical or horizontal position. With different mounting brackets, the DX Hub range suits for both ceiling and wall mounting.
With a base made of metal, the DX Hub range ensures a reliable quality and maximum durability. Most of the components are manufactured in Germany and assembled in Aereco, in France.
