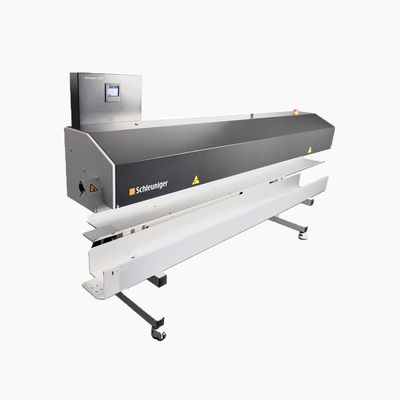

Schleuniger WireStacker - Model 3150 -Active Stacking Machine
The synchronized WireStacker 3150 is designed for precise axial stacking of cables – available in lengths of 2.5 m (8.2 ft), 5 m (16.4 ft), 7.5 m (24.6 ft), and 10 m (32.8 ft). The built-in, synchronized driven transport belts of the WireStacker 3150 allow for stacking cables carefully and safely without wire jams, even for very flexible wires. It processes wires with a diameter of 1.5 – 25.4 mm (0.06 – 1”). The integrated batch tray allows for freely programmable batch production and enables the operator to perform additional tasks simultaneously with the production process. The WireStacker 3150 is easily controlled by I/O signals and speed information from the interface of an upstream cable processing machine. Apart from transporting the wire, the 45° tilted transport belt also ensures optimal guiding and secure ejection. The WireStacker 3150 excels in high flexibility, making it an important element within an efficient and precise cable processing line.
WireStacker 3150
Metric
- Raw material length: 2.5 m (8.2 ft/s), 5 m (16.4 ft/s), 7.5 m (24.6 ft/s), 10 m (32.8 ft/s)
- CE conformity: The WireStacker 3150 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
- Height of wire outlet min.: 930 mm
- Height of wire outlet max.: 1100 mm
- Electrical connection: 110 / 115 / 230 / 240 VAC, 50 / 60 Hz
- Compressed-air connection: 6 bar
- Dimensions/length: 2805 mm
- Dimensions/width: 610 mm
- Dimensions/height: 1500 mm
- Weight: 120 kg
- Interfaces: PPI standard (I/O signals and speed information), Emergency Stop
Imperial
- Raw material length: 2.5 m (8.2 ft/s), 5 m (16.4 ft/s), 7.5 m (24.6 ft/s), 10 m (32.8 ft/s)
- CE conformity: The WireStacker 3150 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
- Height of wire outlet min.: 930 in
- Height of wire outlet max.: 1100 in
- Electrical connection: 110 / 115 / 230 / 240 VAC, 50 / 60 Hz
- Compressed-air connection: 90 psi
- Dimensions/length: 110.43 in
- Dimensions/width: 24.01 in
- Dimensions/height: 59.05 in
- Weight: 264.6 lb
- Interfaces: PPI standard (I/O signals and speed information), Emergency Stop
