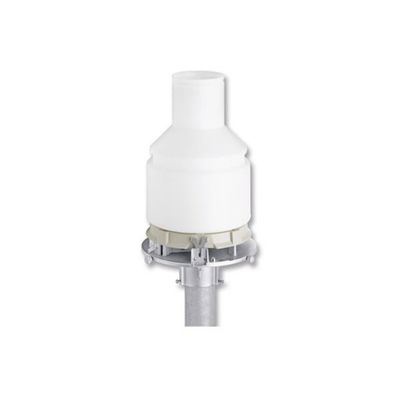

Adcon - Model OTT Pluvio² L -Precipitation Gauge
The OTT Pluvio² is an all-weather precipitation gauge that uses superior weight-based technology to measure the amount and intensity of rain, snow, and hail. Developed in conjunction with industry-leading meteorological services, the OTT Pluvio² employs a high-precision load cell and algorithms that compensate for wind, temperature, and evaporation, ensuring the highest accuracy precipitation measurements over time.
Most popular related searches
early flood monitoring
all-weather precipitation gauge
precipitation gauge
early flood monitoring system
load cell
water level sensor
precipitation monitoring
flood alarm
meteorology service
windbreak
- Accurate measurement: precipitation accuracy within 0.004 inches with accumulation and intensity readings and filter algorithms to compensate for wind, temperature, and evaporation
- Virtually maintenance-free operation: lifetime factory calibration, drift-free measurements, and robust protective housing eliminate field visits for instrument service
- Multiple communication interfaces: SDI-12, RS-485, and Pulse Output options
- Solar panel power options make the instrument ideal for remote locations
- Easy software setup and a USB interface for communication with computer
- Wind protection shield available for particularly exposed locations
- Heated ring option available to prevent the accumulation of snow on the sensor
- Easy installation onto 4" pipes
- Precipitation Measurement: Continuous, real-time measurement of rain, snow, hail, and sleet in all monitoring environments, even remote environments without power supply
- Monitoring Road Conditions: precipitation amount and composition are combined with general visibility measurements to provide an accurate picture of road conditions
- Early Flood Warning: when combined with water level sensors, the Pluvio2 is the central component in an early flood warning system
- Orifice : 200cm² or 400cm²
- Dimensions (Ø x h) : 200cm²: 450mm x 740mm
- 400cm²: 450mm x 660mm
- Collecting volume : 200cm²: 1500mm/m²
- 400cm²: 750mm/m²
- Intensity / min : 200cm²: 0,2 ... 30mm
- 400cm²: 0,1 ... 15mm
- Intensity / hour : 200cm²: 12 ... 1800mm
- 400cm²: 6 ... 1800mm
- Accuracy @ -25°C ... +45°C : ± 0.05 mm
- Resolution : 0.01mm/min or mm/h
- Intensity output interval : 1min
- Optional heating : 200cm²: 24VDC / 50Watt
- 400cm²: 24VDC / 100Watt
- Weight : 15kg
- Sensor element : sealed load cell
- Output 1 : SDI-12
- Output 2 : pulse per 0.1 mm (configurable) and status (0...120 pulses/min; configurable 5 or 2Hz )
- Power Supply : 6 ... 28 VDC
- Current : typ. 12 mA at 12 V
- Operating conditions : -40 ... +60°C / 0 ... 100% (non-condensed)
- Materials: base plate /bucket/pipe housing : stainless steel, aluminium / polyethylene / ASA, UV- resistant
- IP protection : Housing: IP54, resistant to salt fog
- Load cell: IP67
- Electronics: IP64
- Standards : EN 61000-4-2/4/5/6, Level 5 (4 kV) EM/EMI EN 61000-4-3, CE conformity
