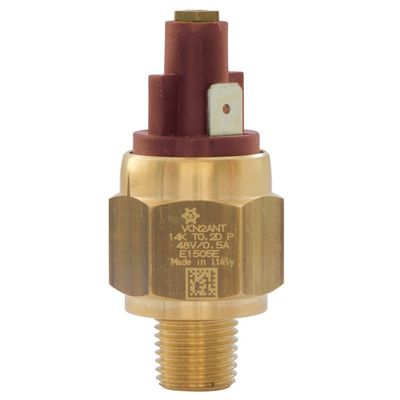

Elettrotec - Model VCN -Adjustable Vacuum Switches With Push-On Terminal

Switch rating: 0.5 (0.2) A – 48 Vac-Vdc. Electrical connection: Faston 6.3 x 0.8. Working range: -200 -900 mbar. Max. static pressure: 20 bar. HysteresiscFixed. Temperature tange: -30 °C +140 °C (according to diaphragm/seal material). Contact: NO – NC. Body material: Brass – Stainless steel AISI 316. Diaphragm/ Seal material: NBR – FKM – Silicone – HNBR – EPDM. Threads: G1/8 BSPT – G1/4 BSPT – M10 x 1 – M12 x 1.5 – G 1/4 BSPP – G 1/8 BSPP – 1/4 NPT – 1/8 NPT. Protection: IP00 fast on – IP54 with CAP 1 and CAP 10 – IP65 with CAP 3. Mechanical life: 106 operations. Dimensions: Body Ch 24 – Max. high 46 mm. Options: Set-point rising and falling – Gold-plated contacts for low current – Degreased for oxygen.
