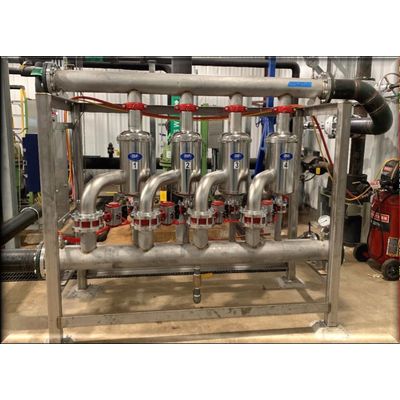

ZGF EZ Clean - Model EC700S/SLT -Advanced, Automatic, Non-Disposable Liquid Filtration Systems
The EC700S / EC700SLT is the most advanced, automatic, non-disposable liquid filtration system. This best-in-class technology is ideal whenever you require removal of suspended solids, silt, grit, fines or other particulate matter from water or other water-based process fluids.
- The EC700S’s modular “pod” design can satisfy any flow requirement >200 gpm.
- Each “pod” houses seven (7) Spring Filter elements.
- The EC700S design allows for 24/7 uninterrupted operation.
- EC700S system flowrate and filter element micron rating determine the required number of pods.
To see the ZGF Spring Filter in operation, click the Spring Filter animation. Click on the ZGF Spring Filter video to see how all debris is removed from the filter element during backwash when the coil opens and shimmers.
The EC700S / EC700SLT requires virtually no regular maintenance. However, should you ever need to access the Spring Filters, it’s simple. Click here to see the EC700S Placard which shows step-by-step procedures to access the Spring Filters.
There are two pod configurations.
- EC700SLT pod:
- 2” inlet and outlet
- typically used with 20 µ and 35 µ Spring Filter elements
- used flow rate per pod is less than 135 gpm
- EC700S pod:
- 4” inlet and outlet
- typically used with Spring Filter elements 50 µ and larger.
EC700S /EC700SLT materials of construction can be matched to ensure compatibility with the wide array of fluid compositions; and the EC700S / EC700SLT is designed for continuous service up to 190oF and 120 psi. ZGF can provide the pods and manifolds in many materials to meet your requirements.
- Standard: 304 stainless steel
- Additional corrosion resistance: 316 stainless steel
- Most corrosion resistance: Super Duplex
Filter elements are available in the following materials.
- Standard:
- Coil: 316 stainless steel
- Cage: 316 stainless steel
- Additional corrosion resistance:
- Coil: High nickel alloy
- Cage: Super Duplex
- Most corrosion resistance:
- Coil: High nickel alloyCage: High nickel alloy
