Advanced Energy - Model Impac 600 Series -Digital, Modular Pyrometer with Exchangeable Sensor Heads for Non-Contact Temperature Measurement

The Impac 600 series is a digital, modular pyrometer that provides a highly customizable design with easy installation and maintenance. The long-wavelength IN 600 is best suited for non-contact temperature measurement on non-metallic or coated metallic objects. The IS 600, IGA 600, and IGA 600/23 use short wavelengths for measurements of metals, ceramics, or graphite. The IN 600/5 is specifically designed to measure the temperature of glass surfaces.

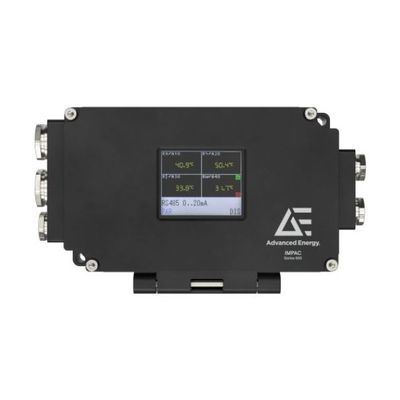

The modular concept allows for various combinations of system components: converter box, sensor heads, and multi-sensor box. The standard configuration includes an electronic converter box, a sensor cable, and a removable sensor head to allow for easy exchange. Each converter box can connect up to two sensor heads or up to two optional multi-sensor boxes that connect up to four sensor heads each. To ensure maximum flexibility, the system allows for any combination of the available sensor heads, even with different wavelengths.

• Install in harsh industrial environments
• Removeable sensor heads for easy exchange without the need to remove the complete sensor cable and without recalibration

• Connection of up to 8 sensor heads to one converter box (8 measuring points in one pyrometer system). If wanted, sensor heads with different wavelengths can be connected to the same converter box

• Converter box available with or without display
• Optional multi-sensor box
• Optional communications: analog and/or RS-232/RS-485 and/or Profinet
