NWPX Park StormTrooper - Advanced Hydrodynamic Separator
The NWPX Park StormTrooper is the most advanced hydrodynamic separator available in the industry. Its state-of-the-art system employs patented technology to effectively remove sediments, trash, and oil from stormwater runoff, ensuring responsible environmental practices and compliance with the EPA Clean Water Act. The StormTrooper features proven technology and has been successful in thousands of installations across the Nation. Hydrodynamic separators are a versatile component of stormwater management and can be tailored to many applications, including aquifers and sensitive watersheds. The StormTrooper® AQ was originally designed to protect the Edwards Aquifer in Texas and is now available for sensitive watersheds everywhere. Our separators can also capture hazardous materials from gas stations and other high-risk sites that are particularly vulnerable to stormwater contamination. The StormTrooper® HMI captures free oil, grease, TSS, debris, and other hydrocarbons, with minimal operating costs and no filter cartridges needed. The NWPX Park StormTrooper is easy to install, maintain, and operate, offering a durable solution to improve the quality of stormwater discharge and protect the environment.

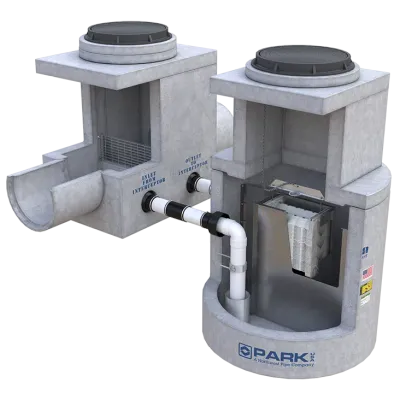

The StormTrooper® system features a patented design with coalescing plate technology and is specifically engineered to capture free oil and sediment from stormwater runoff and retain these pollutants for periodic removal. The system targets the “first-flush” flow, which occurs during the initial phase of a storm event and carries most pollutants from catchment areas.
Designed to handle varied flow rates, from low to very high, the StormTrooper® provides optimal treatment of stormwater runoff. To accommodate excessive flow, our hydrodynamic separator incorporates a bypass mechanism that allows only the design flow to pass through the interceptor while diverting high flows directly to the storm sewer system. This prevents scouring and the resuspension of captured pollutants from previous storm events.
Maintaining any stormwater quality treatment system is critical to its long-term performance. The StormTrooper® design makes inspections and maintenance easy as all inspections are conducted at grade. In the event of an oil, fuel, or chemical spill, an immediate inspection is necessary. Any accumulated oil and sediment should be removed by a licensed waste management company and disposed of correctly. StormTrooper® maintenance is quick and affordable, and it can be performed using a standard vacuum truck.
With its flexible design, the NWPX StormTrooper® adapts to a variety of applications that demand dependable stormwater quality management.
Pretreatment
This hydrodynamic separator can be used as a pre-treatment system before other stormwater management practices, such as infiltration systems or bioretention areas.
Standalone Treatment
The system can be used as a standalone treatment system for stormwater runoff and can be installed in-line with the stormwater conveyance system or in a separate treatment train.
Upstream/Downstream of Detention Pond
Installed upstream of a detention pond, a separator can remove pollutants from the runoff before it enters the detention pond to increase the pond effectiveness. Downstream, the separator can remove sediment and other pollutants that were not captured.
Aquifer Recharge Zone Treatment
The StormTrooper® AQ is designed specifically for use in an aquifer recharge zone, where pollutants carried by stormwater runoff can seep into the ground and contaminate the aquifer.
Gas Stations
Gasoline stations and auto repair shops are a common source of pollution, with the risk of oil and other hydrocarbons being spilled into the stormwater system.
Landfills and Waste Management
Landfills and waste management facilities are a significant source of pollution, with the risk of hazardous materials entering the stormwater system.
Spill Prevention
By incorporating the StormTrooper system into spill prevention plans, industries and businesses can effectively reduce the risk of environmental damage and associated cleanup costs.
Retrofit
Hydrodynamic separators can be retrofitted into existing stormwater management systems to improve pollutant removal and reduce maintenance requirements.
Combination with Other Stormwater Management
Hydrodynamic separators can be combined with other stormwater management practices, such as rain gardens or green roofs, to improve their overall effectiveness.
