National Recovery Technologies, Inc., (NRT)

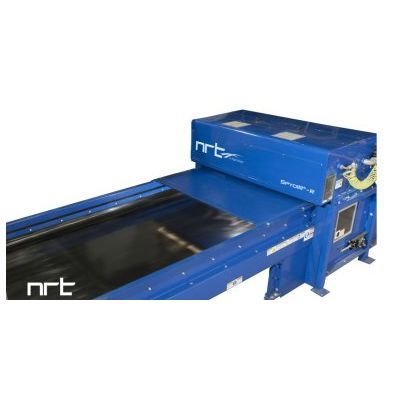

NRT SpydIRModel R -Advanced Infrared Sorting System

SHARE

The SpydIR®-R is an advanced infrared sorting system that separates numerous selected polymers from a mixed stream. It uses proprietary technology and fast, highly-sensitive algorithms to rapidly identify unique polymer signatures from their infrared spectra. SpydIR® is the only technology that uses PET Boost™ that improves detection of thin-wall PET, wet PET and full-sleeve labeled PET. While other optical sorters detect material over the belt and eject some time later, NRT offers In-Flight Sorting®, which detects and ejects material in flight. In-Flight Sorting enables the use of transmissive detection and eliminates motion-related error and belt interference, increasing purity levels and hit rates.

Most popular related searches
  • NIR identification of multiple polymer types
  • Proprietary infrared sensing technology and algorithms for rapid detection
  • PET Boost™ technology improves detection of thin wall PET, wet PET and full sleeve PET
  • Operator-friendly color touch-screen graphic control panel
  • Sorts 1-7 plastics in any combination
  • Separate WEEE plastics into user-defined polymer groups
  • Recover clean PET product from polymer residue streams for return to main PET stream
  • Polymers identified include PVC, PS, PETG, PLA, PC, PE, PP and other polymers in any combination
  • Recover wood product from C&D streams
  • Sort Tetra Pak®, aseptic and PE coated gabled products from a container stream
  • Remove cardboard, paper, and other fiber from a container stream
  • In-Flight Sorting® provides unbeatable purity and hit rates
  • Industry leading signal-to-noise ratio is ideal for thin-wall PET
  • High speed identification with throughput rates exceeding 16,000 lb/hr
  • Remote diagnostics, adjustments and upgrades
  • Width sizes from 24" to 120
