Magritek Spinsolve - Model 80 Ultra -Advanced Multi-Nuclear NMR Spectrometer
FromMagritek Ltd.

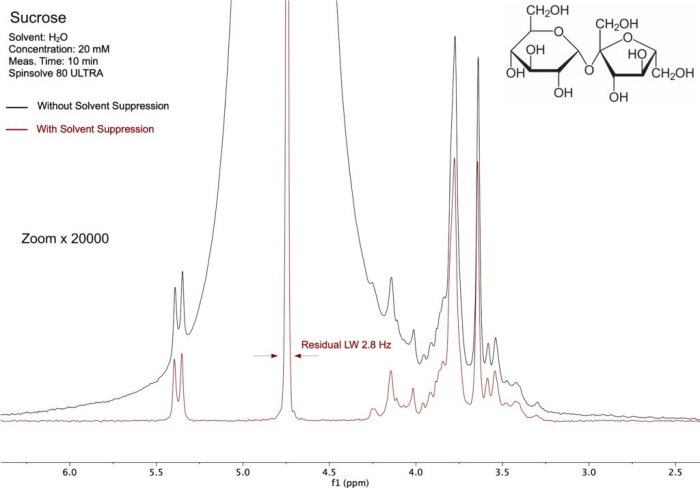

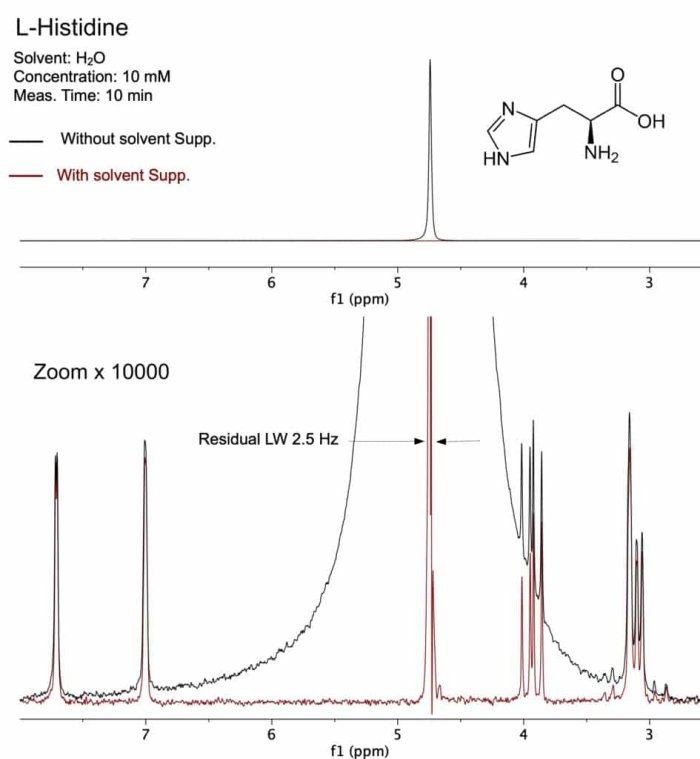

Optimum solvent suppression performance for samples in protonated solvents. Sensitivity measured in a single scan on a 1% ethylbenzene sample dissolved in deuterated chloroform. The signal used for the calculation is the one of the methylene group and the noise is calculated for a signal free region between the aromatic and the methylene signa.
Most popular related searches
- 1H frequency: 80 MHz
- 1H and 19F on all systems + X nuclei for dual channel systems
- Resolution:
Spinsolve 80
- Linewidth at 50%
- Linewidth at 0.55%
Spinsolve 80 Ultra:
- Linewidth at 50%
- Linewidth at 0.55%
- Linewidth at 0.11%
- Sensitivity: 200:1 (Dual channel for 1% Ethyl Benzene)
- 3D PFG gradients optimized for gradient-enhanced methods
- Optional PFG gradients for diffusion spectroscopy (>0.25 T/m)
- No cryogens
- External Hardware Lock with no need for deuterated solvents
- Unparalleled stability
- Suitable for on-line reaction monitoring
- Easy to operate
- Compatible with automatic sample changer
- Dimensions: 58 x 43 x 40 cm (23” x 17” x 16”)
- Weight: 72.5 kg (160 lb)
