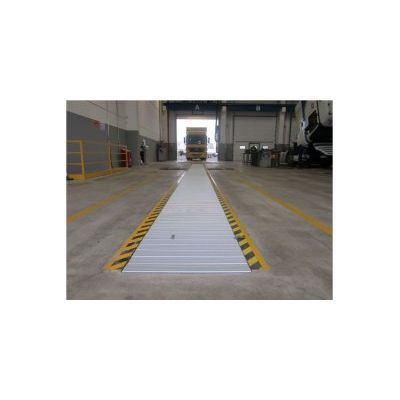

AER - Sliding Cover System for Service Pits

• Storage area at the top of the pit equipped with guides for cover storage, 4-blade reversible pneumatic motor, gearbox, limit switches, pressure regulator and condensate separator, muffler, fittings, brackets and supports in galvanized sheet, burnished driving shaft, polythene shoes, blocking buffer, galvanized pinions, bearings, rilsan tube, control panel with operating keys, pressure gauge, system stop mushroom head push button.
• The system does not use electricity, which makes it particularly safe in the presence of vehicles powered by natural gas, methane or gasoline.
• The system allows total or partial closing of the pit in a fast and secure manner.
• The buttons on the control panel placed near the pit allow the operator to activate the system which closes or opens the pit in a few seconds.
• The standard version is supplied with manual opening/closing system with locking stave.

• Max capacity load 1500 Kg/m²
• Max width 1300 mm
• Min width 600 mm
• Max length single version 18 m
• Max length tandem version 30 m

Version Available

• Single cover Tandem cover
