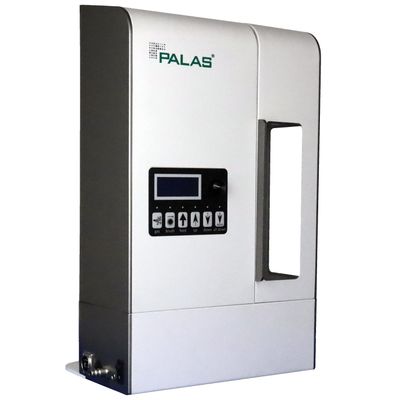

Palas RBG system - Aerosol Generator for Solid Particles

The RBG series is a classical since 1983 in the range of dry powder dispersion for low mass flows.

The RBG series with its different model variants offer advantages for a wide range of applications and is used worldwide to generate reliable and reproducible test aerosols from powder and dust. The particle size distribution can be in the range from < 100 nm to 200 µm, polydisperse as well as monodisperse. Mass flows can be set in the range from a few mg/h up to 800 g/h. Depending on the model variant it is possible to operate the RBG up to 10 bar counter pressure and control it via PC.

All technical parameters as well as more information: https://www.palas.de/en/product/rbg

RBG 1000 - Generation of test aerosols from powders, pollen, and spores, mass flow approx. 40 mg/h – 430 g/h

RBG 2000 - Generation of test aerosols from powders, pollen, and spores, mass flow approx. 200 mg/h - 560 g/h

RBG basic - Generation of test aerosols from powders, pollen, and spores with manual pressure setting, mass flow approx. 0.04 – 800 g/h

RBG professional - Generation of test aerosols from powders, pollen, and spores for operation up to 10 bar counterpressure, mass flow approx. 0.04 – 800 g/h

RBG solo - Generation of test aerosols from powders, pollen, and spores with integrated pump independent from pressurized air supply, mass flow approx. 0.04 – 800 g/h
