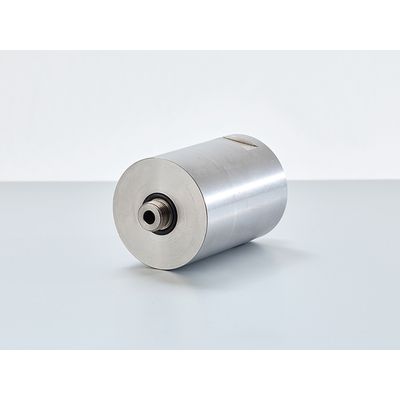

GRIMM - Model 5622 -Aerosol Neutralizer
The GRIMM 5622 aerosol neutralizer is based on the radioactive decay of Am-241 (nominal activity 18.5 MBq), that produces a bipolar ionic atmosphere by α radiation. Irregularly charged particles (from ambient or lab generated) are brought into a defined stationary-state charge distribution, regardless of their initial charging state. Aerosol neutralizers based on radioactive sources are nearly maintenance free and well proven.
Most popular related searches
aerosol neutralization
fundamental aerosol research
aerosol flow
particle generator
aerosol size
aerosol research
nanoparticle monitoring
nanoparticle
ambient particle
aerosol particle
- Am-241 α radioactive source
- nominal activity 18.5 MBq
- aerosol flow rate up to 20 L/min
- low maintenance
- easy to operate and safe
- compatible with GRIMM SMPS+C and SMPS+E systems
- neutralizer for aerosol sizing with SMPS systems
- neutralizer for particle generators
- fundamental aerosol research
- investigation of particle charging
- source type : Am-241 sealed radioactive source; covered with gold layer
- ion generation method : alpha (α) radiation, maximum energy 5.6 MeV
- nominal activity : 18.5 MBq
- half-live : 433 y
- aerosol flow rate : up to 20 L/min
- aerosol medium : Air or N2
- housing : stainless steel
- dimensions (h x w x d) : 10 x 5 x 5 cm (4 x 2 x 2 in)
- weight : 0.75 kg (1.7 lbs)
