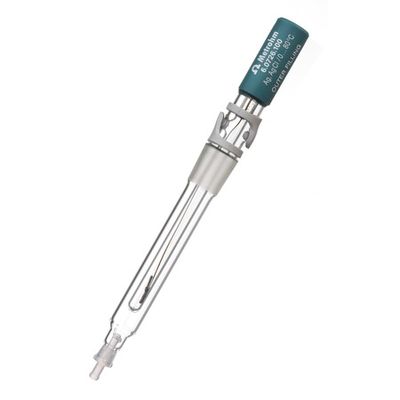

Metrohm - Model 6.0726.100 -Ag/AgCl Reference Electrode (Length 12.5 cm)
FromMetrohm AG
Silver/silver chloride reference electrode with Double-Junction System, installation length 10 cm. The standard ground-joint 14/15 enables easy assembly, and the flexible ground-joint diaphragm, which is insensitive to contamination, can be replaced at any time. The reference electrolyte and the bridge electrolyte can be selected freely according to use, and are easy to replace. This sensor is supplied without electrolyte filling.
Most popular related searches
- Bridge electrolyte type: variable
- Diaphragm: Ground-joint diaphragm
- Electrode plug-in head: Metrohm socket B
- Electrolyte outflow (µL/h) with reference to 3 mol/L KCl: 5...50
- Max. installation length (mm): 100
- Min. immersion depth (mm): 10
- Reference electrolyte type: variable
- Reference resistance (kΩ) with reference to 3 mol/L KCl: <3
- Reference system: Ag wire/AgCl
- SGJ sleeve: Standard ground-joint 14/15
- Shaft diameter bottom (mm): 12
- Shaft diameter top (mm): 12
- Shaft material: Glass
- Temperature range, long-term (°C): 0 ... 80
- Temperature range, short-term (°C): 0 ... 80
