Agacli - Roof Exhaust Fan
FromAğaçlı Silo A.Ş.
In order for the grain to be stored in the silo for a long time, regular ventilation is required. Fans carry out the air flow inside the silo. Different fans are used depending on the characteristics of the grain stored and the capacity of the silo. The fan directs the air it takes from outside with the turbine into the silo. Air is directed into the silo with the help of the fan hood mounted on the silo ventilation ducts. Fans are produced from galvanized sheet metal.
Most popular related searches

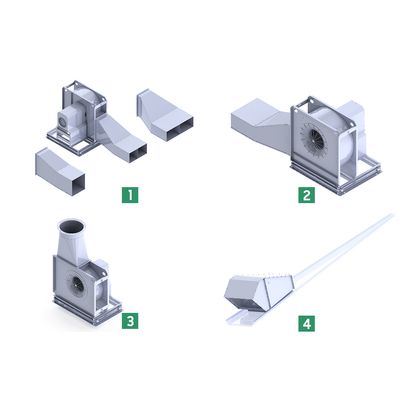

Radial Fan
- It is used in flat bottom silo ventilation.
- It is produced in different capacities and powers to suit silo ventilation needs.
- Radial fan operates at 3000rpm
2) Radial Fan Hood
- It is used to mount the radial fan to the silo ventilation duct.
- It is produced in different sizes according to ventilation duct dimensions and fan size.
3) Vertical Outlet Radial Fan
- It is used in conical bottom silo ventilation.
- It is produced in different capacities and powers to suit silo ventilation needs.
- Vertical outlet radial fan operates at 3000rpm .
4) Exhaust Fan
- It is used to evacuate the air inside the silo through the silo chimney.
- It prevents moisture from forming on the silo roof.
- In silos where ventilation needs are high, it is mounted on the silo roof.
- An electric motor with 1.5kw power and 1500rpm is used in the exhaust fan.
