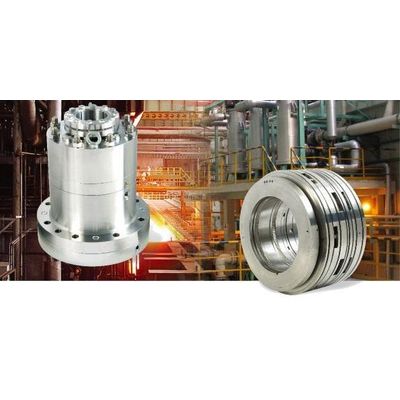

Pinnacle-Flo - Model G70 Series -Agitator Mechanical Seal
Mixer mainly applies 2 type of materials ,stainless steel and enamel According to different operation conditions. Our mechanical seal designs on single face double face with bearing and without bearing special design can reduce such restrictions on India meter pressure, speed, temperature axial displacement.
Most popular related searches
Normal material combination:
- Seal face Graphite, SiC, TC
- Auxiliary Seatng:FEP coating, FKM, EPR, FFKM Metal composition: 316, Hast C. duplex steel, Bellows 316, AM350, HAST.C. Alloy 718, T1.
Structure;
- G70A. - Unbalanced
- G70B - Balances
- G70C - Bellows
- G70D – High pressure design “D” far double. “Z” with belt bearing
Operating parameters:
- Temperature: G70A, G70B, G70D, -20 °C~220 °C, G70C:-20 °C ~ 424 °C
- Speed: 5 m/s
- Pressure: G70A, 13bar, G70B, G70C: 26 bar, G70D: 80 bar
- Standard Size: 40mm-220mm (>220 coustomized)
