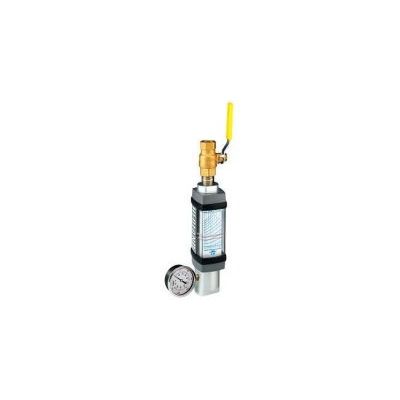

Hedland - Air and Compressed Gas Meters Test Kit

Flow ranges: 0.5 - 5.0 SCFM (0.2 - 2.2 L/SEC) up to 100 - 1000 SCFM (50 - 475 L/SEC). Construction: Aluminum, brass and T303 stainless steel. Sizes: 1/4 to 1-1/2 inch ports. Ports: NPTF and BSPP. Pressure up to 600 psi (41 bar) maximum. Temperature up to 240 °F (116 °C). Accuracy ±2% full scale. Repeatability ±1%. Standard calibration: 1.0 specific gravity. Direct reading. Install in any position. 360° rotatable guard/scale. Easier to read linear scale. No flow straighteners or special piping required. Relatively insensitive to shock and vibration. Brass ball valve with chrome-plated brass ball and Teflon seals. Pressure gauge, glycerin dampened: 0 – 160 psi (0 – 10 bar).
