Hitema - Model NOVA Series -Air-Cooled Liquid Chillers with Axial Fans

SHARE

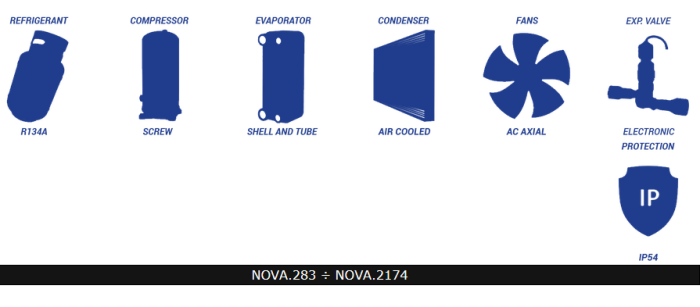

Standard Configuration:. Compressors:Screw. Condenser:Air-Cooled, with copper tubes and aluminium finned core. Evaporator:Shell & Tube. Expansion Valve: Electronic. Fans: AC axial. Protection Rating: IP54. Refrigerant: R134a; R513A and R1234ze. Cooling Capacity Renge: 283kW ÷ 2136kW.

Most popular related searches
air cooled liquid chiller with axial fan
air cooled liquid chiller
axial fan
screw chiller
air cooled chiller
coring tube
  • High cooling capabilities with a wide range of possible applications
  • According to the conditions of work all models are available in three different modes: ECO with economizer, NE without economizer, HE high efficiency with EC fans, optimized coil design
  • The series can be designed with oversized compressors motors for high ambient design conditions
  • Integrated hydraulic module with tank as an option (inverter pumps on request)
  • AC axial with Electronic fan speed control (cut-phase): EC fans on request
  • Inverter driven compressor possibility for extreme efficiency
  • Adiabatic and Free-cooling design is possible
  • Advanced controly
