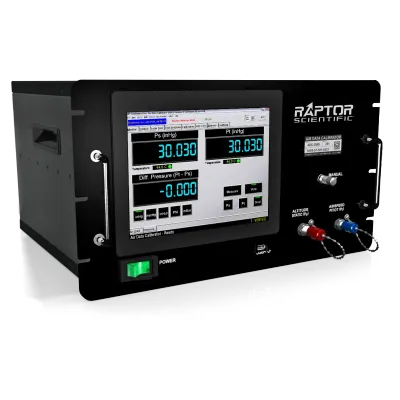

The ADC-2550V3 is a high-accuracy air data management system capable of controlling and measuring Altitude and Airspeed pressures to the highest degree of accuracy. The control and measurement range of the test system meets or exceeds most requirements for commercial and military test applications.
The ADC utilizes two digi-quartz absolute pressure transducers which provide unmatched accuracy and long-term stability. An expansive 10.4-inch glass PCAP touchscreen display allows the operator control the calibrator directly from the front panel. The intuitive graphical user interface features easily accessible modes of operation, including: Measure, Control, Leak Test, Test Program (capable of programming test sequences), Remote and Calibration. The ADC features several interfaces, including RS-232, IEEE-488.2 (for remote operation), VGA, USB2.0 (3x) and RJ-45.
The ADC is designed with hardware and software features for maximum protection to the operator and unit under test (UUT). The calibrator features input pressure regulation, over-range, over-limit and over-pressurization protection. Micro-porous filters and screening prevent debris from contaminating the system. The calibrator is equipped with pressure relief valves to protect the pneumatic system components and the UUT from damage. In the event that the calibrator loses power, internal vent valves and a front panel manual vent can be used to safely vent to ambient. Test Program mode allows the operator to create a virtually unlimited number of test routines for semi-automated testing and report generation, saving time and providing improved test consistency.
The ADC can be calibrated using a Primary Pressure Standard that will cover the full range (ADCS601, Dead Weight, Schwien).
