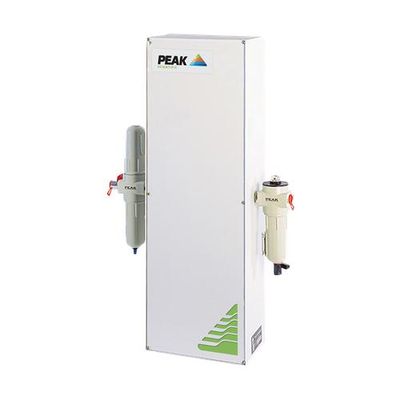

Peak Scientific - Model AD140L -Air Dryer

FromPEAK Scientific Instruments Ltd

SHARE

The AD140L is a useful attachment for any laboratory`s external source of air, removing moisture and ensuring the delivery of dry air. Moisture content in house air can contaminate lab instrumentation, impacting on results and in some cases damaging the instrument itself. Compact in size, wall-mountable and light, the AD140L requires little space and its few moving parts mean minimal maintenance is required.

Most popular related searches

zero air generator

particulate filter

laboratory instrument

air contaminant

laboratory contamination

silent generator

Produces clean, dry air, ensures optimum supply for gas generators and instruments
Dryer performs 24/7 if needed
Dryer is wall-mountable for small labs
Few moving parts means little maintenance required and ensures long life of the generator
Completely silent in operation
Minimal set-up required
12 month comprehensive on-site warranty

Gas

Gas Type: Air
Max Gas Flow: 140L/min
Max Output Pressure: 115psi/7.9bar

Site & installation

Gas Outlets Fitting: 1x 1/4” BSP Female
Min Inlet Pressure: 100psi/6.9bar
Max Inlet Pressure: 120psi/8.3bar
Start Up Time: 90 mins
Power Consumption: 8 - 19.2 W
Voltage: 100 - 240 V
Frequency: 50 / 60 Hz
Current: 0.8 A
Max Operating Temp: 25°C / 77°F
Accreditations: CE

Dimensions & weight

Size (HxWxD) mm: 660 x 472.4 x 160 mm
Size (HxWxD) Inches: 26 x 18.6 x 6.3 inches
Generator Weight: 19kg / 41.8lbs

Service requirements

Annual replacement of particulate filters
