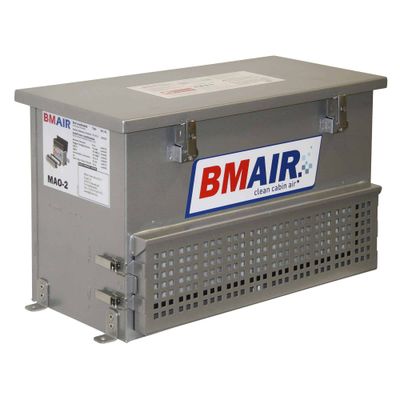

BMAir - Model MAO-2 -AIr Filter Pressurization Systems
The current generation of construction machines are streamlined and often include various after-market options. Consequently, the installation space for pressurised filter systems has become more limited. That is why BMAir developed the MAO-2. Smaller, powerful, mountable in various positions and suitable for practically every construction machine. The BMAir MAO-2 represents our highest standard in the field of quality and safety for machine operators.
The MAO-2 standard includes a G4 prefilter that can be cleaned and replaced easily and rapidly. Extra filters can be placed in the system in the compartments reserved for this purpose. These can be equipped with a HEPA filter and/or active carbon filters.
The BMAir control system regulates the pressure in the cabin automatically and has patented filter recognition. The display of the system indicates when the Combifilter needs to be replaced. With the exception of replacing the filters, the system is completely maintenance free.
Naturally, the filtering function of all systems and filters are tested in an external laboratory. In addition, we comply with the EMC guidelines; these tests are carried out independently by TÜV Rheinland.
As worldwide market leader and trendsetter in the field of pressurised filter systems we guarantee compliance with the health and safety regulations. However, we do not settle for just compliance; we like to go the extra mile when it comes to the health and safety of machine operators.
Filter recognition:
Thanks to communication by means of patented filter recognition, the machine operator or safety expert can easily see on the display which type of filters are installed and how many hours these will theoretically last.
This means it is no longer necessary to manually open the pressurised filter system, which reduces the risk of contact with pollutants and/or toxic substances to the minimum.
The MAO-2 in a nutshell
- Perfectly suitable for various work environments
- Flexible and suitable for every modern construction machine
- Standard equipped with a G4 prefilter
- Extra filters for specific sectors can be added to the system
- Includes a BMAir control system
- Maintenance free
- Certified
- Weight: 35kg without filters
- Dimensions: 626x355x384mm (L x W x H)
- Filter capacity: 23 litres
- Air output: nominally 40-120m³ per hour
- Gasfiltering: possible with 2×5,5 kg active carbon filter
- Dust filtering: possible with 3x dust filter (G3/P1/P3)
- Voltage: 24/12 Volts
- Max. power consumption: 8.5/10 Ampere
- Inclusive: mounting material
- Material: Stainless steel
- Finish: Powder coated
- K-Factor: 2 to 7
- Hinged lid: Yes
- Coarse filter: Yes
- Multiple discharge options: Yes
- Separate compartment filters harmful substances: Yes
- Can be mounted horizontally/vertically: Yes
- Patented RfiD Filter Recognition: Yes
- Suitable for roof mounting: Optional
- Suitable for deck and mudguard mounting: Yes
- Patented self-cleaning pre-filter: No
- Workplace conditions: Standard
- Construction machine: Excavator, Wheel loader, Forklift truck, Tractor
