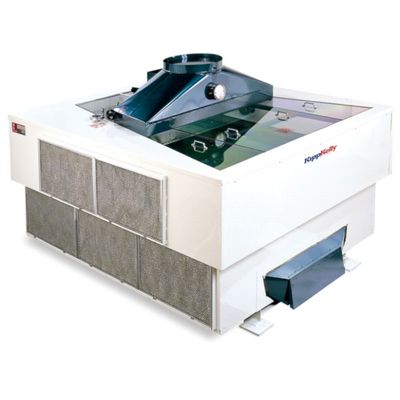

Kipp Kelly - Model Vacuum Series S-30, S-45 and S-60 -Air Flotation Destoners

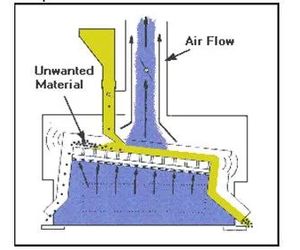

Product is fed onto the oscillating deck towards the higher end. A uniform current of air is drawn through the porous deck by an external fan or plant ventilation system. The lighter weight material flows down and the heavier material, not being supported by the air stream, is carried to the upper end of the deck by the deck motion and discharged. Our design is virtually free of vibration, dustproof and has infinitely variable air control. The deck may be removed quickly and easily for cleaning. Power requirement is low and installation is simple and inexpensive.
Vacuum Style
The remote fan is located away from the density separator and provides suction to the product on the deck media. Destoners and Gravity Tables can be manufactured in a Vacuum Configuration. Air volume is controlled with an air Valve on the duct between the suction fan and the density unit.
Advantages
Built in dust control, lower overall horsepower and usually a lower profile than a pressure style.
Disadvantages
Vacuum seal must be maintained on the feed and discharge points, which can be difficult with light material. More difficult for the operator to see the separation as they are looking through a Plexiglas window.
