Kipp Kelly - Model Pressure Series - S40-60 and S60-60 -Air Flotation Destoners
Product is fed onto the oscillating deck towards the higher end. A uniform current of air is blown through the porous deck by an integral Fan mounted under the deck. The lighter weight material flows down and the heavier material, not being supported by the air stream, is carried to the upper end of the deck by the deck motion and discharged. Our design is virtually free of vibration with the use of a special wobble drive, and has infinitely variable air control. The deck may be removed quickly and easily for cleaning.
Pressure Style

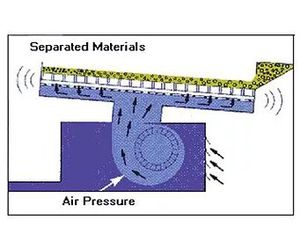

The fan is located under the deck surface and provides the “lift” of air to the product on the deck media. Destoners and Gravity Tables can be manufactured in a Pressure Configuration. Air volume is controlled with an air inlet into the eye of the internal fan.
Advantages:
Simple mechanics and drive, with the deck drive often incorporated with the fan drive. Operator has full view of the deck surface.
Disadvantages:
On dusty material, an overall dust hood and suction system must be incorporated, doubling the horsepower requirements.
