F&J - Air Flow Mini-Calibrators

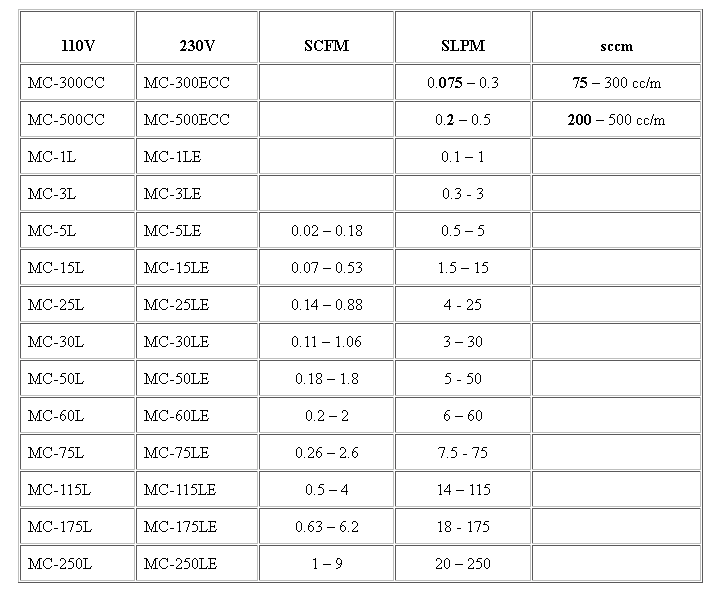

• Various Flow Ranges Available
• 110V and 220V Models Available
• Lightweight; 8 oz. (227 gms)
• Small Footprint
• Adjustable Height
• Flowrates displayed are corrected to a factory settable Reference Temperature and Pressure (4 options available)
• Classical STP - 0°C - 760 mmHg
• Normal T and P - 20°C - 760 mmHg
• Modified Normal T and P - 21.1°C - 760 mmHg
• Standard Ambient T and P - 25°C - 760 mmHg
• Displays Airflow Temperature
• Displays Barometric Pressure
• Bright LED with large characters
• English or Metric Engineering Units (set at factory) Selection:

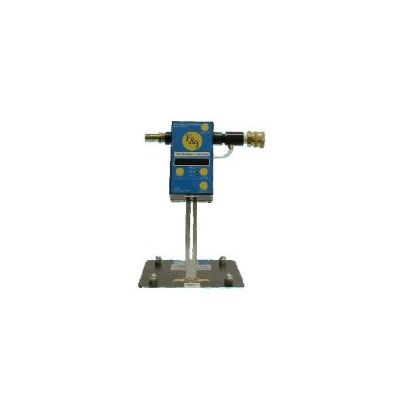

The F&J Mini-Calibrator is a small, lightweight microprocessor controlled instrument with sophisticated electronics that measures and displays flow rate corrected to a reference T and P, barometric pressure, and air flow temperature.

The Mini-Calibrator, which is an exclusive F&J design, is a direct reading instrument utilizing a bright LED with large characters that are easily viewed by an operator. A NIST traceable calibration certificate is issued with each calibrator.

The Mini-Calibrator can be utilized as a handheld unit for field calibrations or temporarily mounted in a variety of methods without requiring a level position. The optional hose barb fittings permit easy connection to the air samplers utilizing flexible tubing.

Measurement Accuracy

• Air Flow ± 2% of full scale
• Temperature (Typical) ± 2ºF (1.1ºC)
• Barometric Pressure ± 2% over measurement range

Calibration
Factory calibration is recommended once per year.

Options

• RS-232 interface, including cable.
• All measured and calculated parameters are accessible through RS-232 port to a computer.
