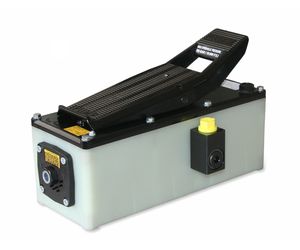

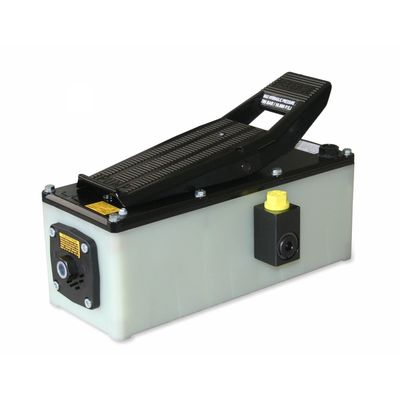

BELL - HP - Air-Hydraulic Pump

Series: HP
Product line: Industrial tools, lifting systems, car repairers, clamping systems, hydraulic equipment (presses,
jacks, ...), tire changers, Automotive
• Operated through pedal
• Unmistakable pedal design with handle for portability
• 3-position pedal operation with spring return (advance, hold and return)
• Single-acting cylinder compatibility (double-acting with optional in-line distributor)
• Compact and sturdy construction for heavy duty and long life
• Easy maintenance
• No air lubricated required
• Connectable to the normal pneumatic network
• Versatile use in both horizontal and vertical positions
• Helical vent screw on the lid for tank ventilation during use
• Preset safety valve on the cover against any overload in the pump
• Externally adjustable oil pressure relief valve against any overload
• Rotating oil port for easy connection to the hydraulic system and improved mobility
• Slots on the base support for easy installation and fixing to the system
• Lightweight
• Low noise (80dBa)
• 1.4 L tank capacity for small and large cylinders (other versions available SL 2.5l and XL 4L)
