IFM - Model AF Series -Air Intake Filters
Industrial Filter Manufacturers offers small, medium and large capacity intake filters and filter / silencers for the protection of air compressors, blowers, engines, and turbines. Standard air intake filters have capacities up to 40,000 CFM with outlet sizes up to 42" diameter. All models are furnished with rugged weather hoods. Standard materials are carbon steel and are furnished with rust preventative primer coating beneath all weather paint.
The AF, AFE, and AFS SERIES incorporate a "radial fin" design which offers maximum filter area, low-pressure drop, and a large dirt holding capacity for long element life. Standard models are furnished with a felted polyester medium rated at 98% efficiency on particle sizes 10 microns and larger. After several cleanings, most elements can be returned to the factory for rebuilding. (See Rebuilding Services)
The AFP two and three stage panel filter series incorporate a panel style element with efficiencies up to 99.98% of 0.3 microns.
Custom design and materials are available on all models to meet higher flow rates and special applications.
- AF Series Air Intake Filters
- Model AF018-01 Thru AF522-24
- Connection Size: 1" Thru 24"
- Flow Rates To 20,000 SCFM

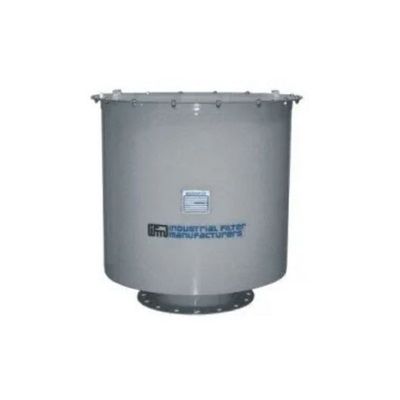

Designed for maximum protection, the efficient dry-type AF Series intake filter has very low initial resistance to air flow. This allows it to meet varying filtered air requirements for all types of equipment
The all weather housing of heavy gauge carbon steel is furnished with a rust preventative primer coating beneath an all-weather paint. The rugged weather hood shields against entrance of rain or snow in outdoor service. The AF filter is designed to mount directly on the compressor blower, engine inlet or on a remote air inlet pipe.
Radial Fin filter element standard construction includes a durable felted polyester medium rated at 98% efficiency on 10 microns and larger. When conditions demand, alternate media of synthetic fibers or glasses can be supplied from .3 to 100 microns nominal retention.
A cleanable molded-end element is standard in models AF444-08 and smaller. Larger models are furnished with a cleanable, sewn end element. Following several field cleanings, the elements can be returned to the factory for rebuilding and reconditioning. Industrial Filter Manufacturers will also custom design to meet special application needs
Models AF030-05 and up have cover handles. Dimensions are in inches and are approximate. Subject to change without notice.
