TMC Micro-g - Air Isolators for In-Tool Applications

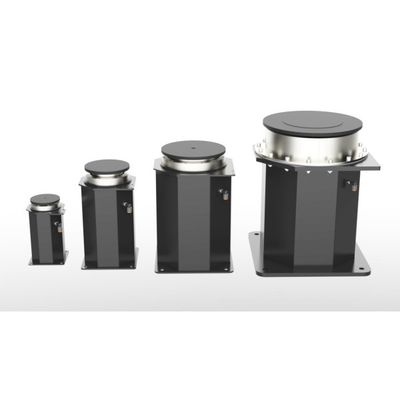

TMC pneumatic vibration isolation systems are the solution of choice for tool designers seeking superior vibration isolation of ultra-precision instruments. TMC now offers our industry standard Gimbal Piston®, MaxDamp®, and UltraDamp™ isolators in a convenient range of capacities, damping levels and leveling versions to suit a wide-range of applications. Ideal for OEM applications, these isolators are offered in a modular, interchangeable, and upgradable design. And, to ensure you specify a version that will meet your settling time and isolation requirements, TMC engineers can model your configuration with our “Moving Stage Application Model.”
Most popular related searches
- Designed specifically for OEM applications
- Supporting payloads ranging from 90 kg to 8,200 kg (200 to 18,000 lb.)
- Delivers a high level of vibration attenuation, even in quiet environments
- Multiple levels of damping to choose from
- Multiple versions of height control
- Isolator designs are interchangeable. Easily accommodates changes of requirements without costly tool redesign
Weight Capacities:
- 160 kg (350 lb.) @ 5.50 kPa (80 PSI) - Download: Technical Drawing | 3D STEP File
- 450 kg (1000 lb.) @ 5.50 kPa (80 PSI) - Download: Technical Drawing | 3D STEP File
- 1150 kg (2500 lb.) @ 5.50 kPa (80 PSI) - Download: Technical Drawing | 3D STEP File
- 2600 kg (5700 lb.) @ 5.50 kPa (80 PSI) - Download: Technical Drawing | 3D STEP File
Damping Levels:
- Gimbal Piston™ for maximum vibration attenuation
- MaxDamp® for high damping of resonance
- UltraDamp™ for highest damping of resonance
Leveling Options:
- Standard Height Control (+/- 2.5 mm, +/- 0.1 in.)
- Precision Height Control Valves (+/- 0.25 mm, +/- 0.01 in.)
- PEPS® II Non-contact
- Precision Electronic Positioning System (+/- 0.0025 mm, +/- 0.0001 in.)
