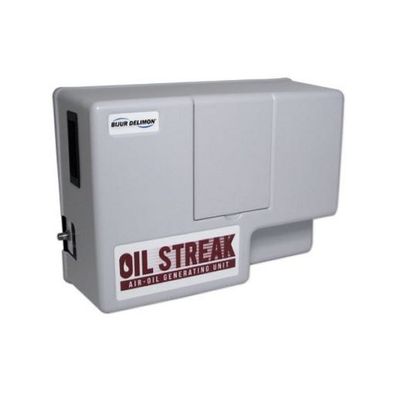

BDI OSG - Model OS3CBF6GGGAAA6L -Air-Oil Generating Unit

Lubricant : oil. Viscosity range : 10-1500 cst. Motor voltage : 24vdc. Solenoid voltage : 24vdc. Integrated controls : premium controller. Level monitoring : lls. Pressure gauge : included. Reservoir : 3l. Outlet thread : 6mm tube. Air inlet thread : 5/16 or 8mm tube. Output volume : 0.01cc-0.025cc/cycle. Max pressure psi : 450. Max pressure bar : 31. Pressure switch : included. Fill : fill cap. Approvals : ce. Um : ea.
