FUTUR - Air-Operated Double Diaphragm Pumps

The liquids handled in the semiconductor industry set different demands to the pumps. Therefore the FUTUR series is available in four materials:

• 4 sizes made of PTFE/UPPE for acids and caustics up to 130°C/266°F (model FUTUR T)
• 2 sizes made of PTFE for hot applications with acids and caustics up to 200°C/390°F (model FUTUR H)
• 4 sizes made of UPPE for slurries (model FUTUR E)
• 2 sizes made of stainless steel (SS 316 L) for solvents (model SLS)

The different pump sizes achieve max. capacities between 10 and 200 l/min (2.6 - 52 gpm). For every pump size and material are appropriate pulsation dampers available.

All FUTUR pumps are self-priming pneumatic diaphragm pumps which may run dry. The pumps have a compact, simple design with few parts only. The housing parts are machined from solid blocks, the basis for a long life time. FUTUR pumps are cleaned, assembled, and tested in a class 100 clean-room line.

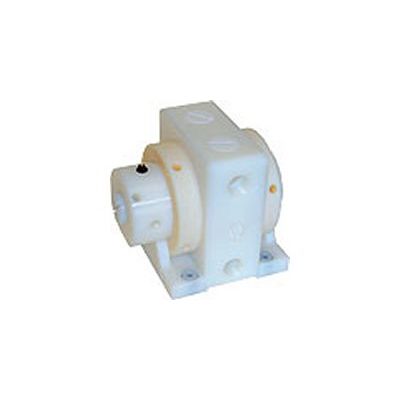

The latest generation of the FUTUR pumps is the FUTUR-Omega series:

• entirely made of PTFE
• new construction with Ω-shaped base frame
• diaphragm and center housing with rotation prevention
• new PTFE material for the diaphragms
• three sizes with max. capacities of 20, 50 and 100 l/min (5.3, 13, 26 gpm)

depending on the application also available entirely made of polyethylene and SS316L.
