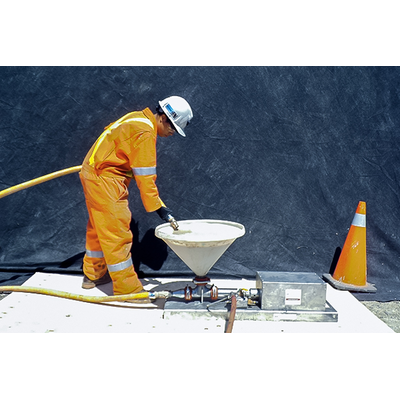

Multiurethanes - Model CG-050/A -Air-Powered Cement Grout Pump

The CG-050/A is a portable, skid-mounted, air-powered grout pump. The lightweight aluminum design makes this pump perfect for smaller cement grouting jobs.

Most popular related searches

Excellent for many applications including hollow block fills, anchor and dowel grouting, door frame grouting, hollow metal filling, machine bases, and under slab void filling.
The holding hopper is connected directly to the suction of the pump for a continuous pumping operation.
System disassembles without tools for fast and efficient cleaning.
All components are easily accessible for operation, cleaning, and maintenance.
Spare parts, rental units, and servicing options are available.

Components

2″ positive displacement, pulsating piston
20 litre holding hopper and 1″ discharge
12.5′ grout hose with 1″ camlock ends

Output: Up to 19 litres per minute
Pressure: Up to 225 PSI
Power Requirements: 15 CFM, 100 PSI
Dimensions: 112 cm x 28 cm x 61 cm
Weight: 25 kg
