AirLogics - Model AQM-65 -Air Quality Monitoring System
Temperature controlled enclosure ensures accurate readings. Advance diagnostics and analysis software detects when the sensor parameters are sub optimal and alerts the user that a replacement is required.
- H2S meter:
- Range 0 – 100 ppm
- Resolution: 0.1 ppb
- Lower detection limit: 12ppb*
- No cross-sensitivities between H2S and NH3
- Moisture is reduced by Nafion sensor membrane
- Ammonia meter:
- Range 0 – 10,000 ppb
- Resolution: 0.1 ppb
- Lower detection limit: 0.2 ppm
- Mobile, lightweight
- Fully integrated components all made by Aeroqual, as opposed to ad-hoc system from different manufacturers
- Easy to re-configure/add other instruments, including PID for Total VOCS, ozone (O3), nitrogen dioxide (NO2), nitrogen oxides (NOx), carbon monoxide (CO), sulfur dioxide (SO2), particulate matter (TSP, PM10, PM2.5, PM1) at will.
- 24/7 operation on 110-power for reliable monitoring; no issues with batteries, or loss of power, batter swap-outs, solar blockage; 100-ft long, heavy duty power cords included

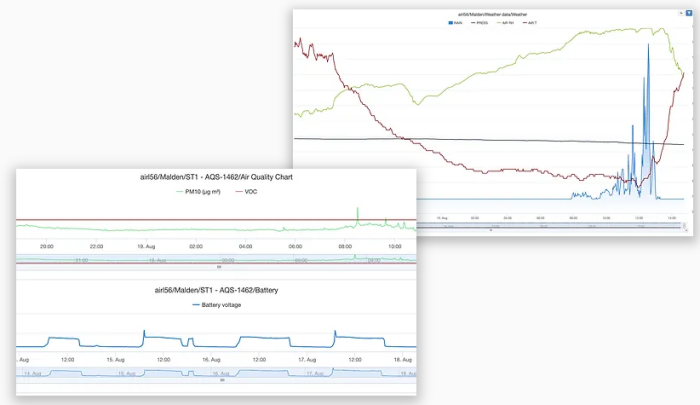

Live Dashboards
Our equipment transmits data in real time to a local computer or cloud-based server via telemetry. Users can log-on to our customizable dashboards to view and manage the data.
Continous Data Collection and Logging
The monitoring data is automatically archived and used to generate summary graphs—daily, weekly, and/or at project completion. The data is stored to an on-site computer and to a secure, remote server maintained by Air Logics or to a secure cloud storage location. The off-site, archived data provides redundancy of the collected dataset and offers clients convenient, remote access to project data via office computers and mobile devices.
