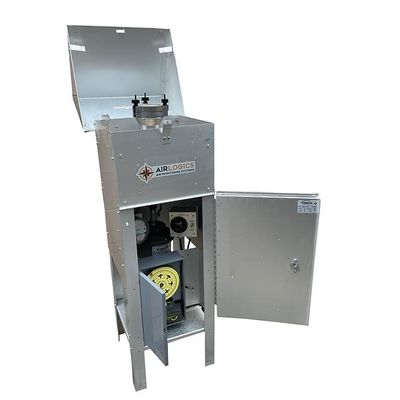

AirLogics - Model PUF -Air Sampler
Our high volume PUF air sampler can be used to collect samples for airborne particulates, volatile organic compounds, and airborne pesticides. The system incorporates a dual sampling module to collect airborne particulates onto the filter paper media and the vapor elements onto a piece of polyurethane foam in the lower chamber of the sampling module. These systems are designed to meet the requirements described for sampling using US EPA method TO-4A, TO-9A, and TO-13A.
Weight: 65 lbs. - Dimensions: 52.5”H x 15”W x 18.75”D. - Power: 115V, 1 Phase, 60 Hz. - Start-Up Amperage: 15 amps. - Running Amperage: 5 amps. - Wattage: 960 max. - Motor HP: 0.6. - Maximum Flow Rate: 200 - 280 L/min. (7-10 cfm). - Flow Indicator: 0” - 100” magnehelic. - Timer: 7 day mechanical timer.
Rental and Application Notes:
- Shipping Weight: 75 lbs.
- Optional calibration kit.
- We do not supply the filter or PUF sample media.
- Extra sample modules are available for rent.
- PUF poly-urethane foam sampler is a complete system designed to simultaneously collect suspended airborne particulate as well as vapor contamination from pesticide compounds.

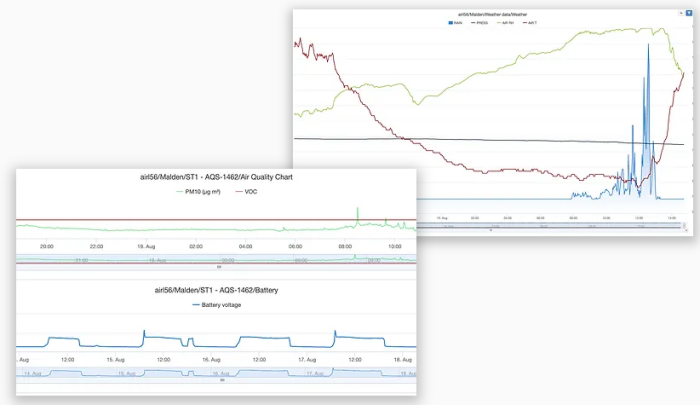

Live Dashboards
Our equipment transmits data in real time to a local computer or cloud-based server via telemetry. Users can log-on to our customizable dashboards to view and manage the data.
Continous Data Collection and Logging

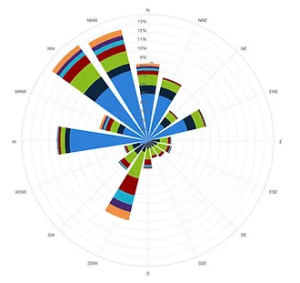

The monitoring data is automatically archived and used to generate summary graphs—daily, weekly, and/or at project completion. The data is stored to an on-site computer and to a secure, remote server maintained by Air Logics or to a secure cloud storage location. The off-site, archived data provides redundancy of the collected dataset and offers clients convenient, remote access to project data via office computers and mobile devices.
