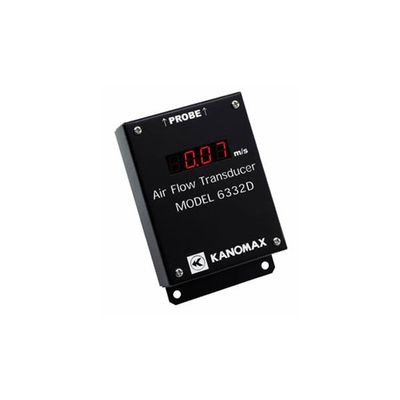

Kanomax - Model 6332/6332D -Airflow Transducer

SHARE

The airflow transducer model 6332/D is designed for fixed installation. The units can be wired with local electric for power and can be connected to any device that can accept analog output. Transducers are a good choice if you need to simultaneously measure airflow at multiple fixed points that may not be in proximity to other points. The relatively low cost of this solution makes it a good choice for facility management and integration into other equipment such as dataloggers, alarms or controllers.

Most popular related searches
air flow transducer
air velocity monitoring
exhaust ventilation system
NIST traceable calibration
air flow instrument
data logger
traceable calibration
exhaust ventilation
air flow sensor
air monitoring

6332/6332D Features

  • Analog output makes it easy to integrate with other equipment
  • Smart probe technology lets you change probes without recalibrating the transducer
  • Purchase probes separately and choose the ones that meet your application needs
  • Quality Control monitoring and controlling air velocity and distribution during drying/ shaping process
  • Combined with thermographic system measure air velocity across the board to evaluate the cooling efficiency
  • 6332D comes with a display 6332 does not have a display
  • Airflow transducers are designed for fixed installation
  • Use on your production line quality control system
  • Monitor facility exhaust ventilation system.
  • Transducers feature 0 to 5 VDC or 4 to 20 mA analog output so you can send your data to other instruments such as data loggers, alarms, or controllers.
  • Selectable Output (Output can be set to either voltage (0 to 5V) or current (4 to 20mA))
  • Quality inspection of factory inspection line
  • Evaluation of thermal measures for PCBs
  • Air volume monitoring of local ventilation system
  • 24-hour monitoring of in-house ventilation
  • Indoor farming

General Specifications

  • Analog Output:
    • Current output: DC 4~20mA (Max. load resistance: 250Ω)
    • Voltage output: DC 0~5V
  • Display Resolution (Model 6332D only):
    • 0.01m/s (Velocity Range: 0 to 2, 0 to 5, 0 to 10 m/s)
    • 0.1m/s (Velocity Range: 0 to 25, 0 to 50 m/s)
  • Response Time: Display: 0.3 second Sampling: 0.1 second Output: 0.1 second
  • Power Supply: DC 12 to 24V
  • Operating Temperature Range: 41 to 104 ºF (5 to 40 ºC) with no condensation
  • Storage Temperature Range: 14 to 122°F (-10 to 50°C) with no condensation
  • Dimensions: 128(W)×78(D)×30(H) mm
  • Weight: 0.7 lbs (320g)
  • Warranty: 1 year
  • What’s Included: Meter, Operation Manual

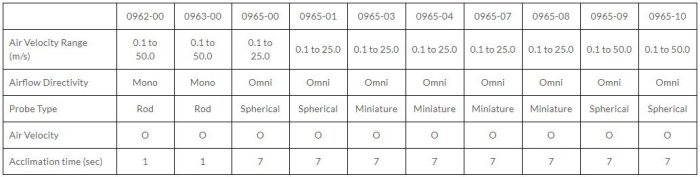

Airflow Transducer Probes (See Table Below)

Measurement Specifications

  • Air Velocity
  • Ranges: 0.1 to 25.0 m/s
  • 0.1 to 50.0 m/s
  • Accuracy: +/- (3% of READING +/- 0.1) m/s
  • Operating Temperature Range: -4 to 158°F (-20 to 70°C) with no condensation
  • Storage Temperature Range: 14 to 122°F (-10 to 50°C) with no condensation
  • Warranty: 1 year
  • What’s Included: Probe, Data ROM, NIST TRACEABLE CALIBRATION Certificate
