AirMix - Model OC -Low Pressure Off-Centre Flat Fan Venturi Nozzle

• Two-piece design, no tools required for opening
• Air cleaning system, no plugging of air entrance
• High drift reduction
• Wide application range
• Same flow rate as corresponding flat fan nozzle
• Suitable as end nozzle on booms in combination with AirMix® flat fan nozzles

Fits in caps with spanner width of 8 mm, commonly used on most sprayers

In connection with AirMix 110° flat fan nozzles AirMix OC off-centre nozzles can be used as end nozzles for a sharp-edged differentation of the spraying rods. Therefore instead of an einer AirMix 110° an AirMix OC is used as end nozzle each time.

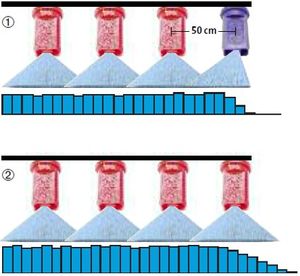

To reach an optimum lateral distribution we recommend two variants :

1. Use in the outside nozzle holder instead of the last nozzle with long stream arm to the inside. Within this you should take the AirMix OC one size smaller than the AirMix 110° in the rods (e.g. for AirMix 110-04 theAirMix OC -03 as end nozzle, because the working width of OC nozzles is a little bit smaller).
2. For comparison: Overspraying at the field edge when used as a end nozzle.
