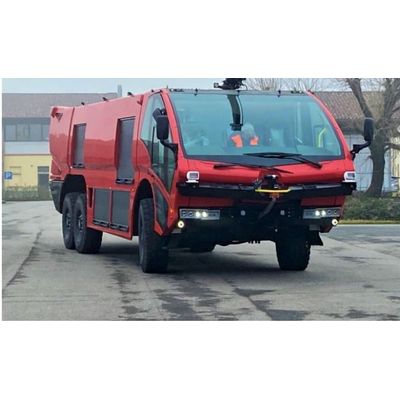

Carrozzeria - Model ARFF 12000 6×6 -Airport Rescue and Fire Fighting Vehicle

Cabin: 4 seats - Air conditioning - 02 doors - ECE R29 certified.

Acceleration 0-80 km/h: < 20"

Max. speed: >115 km/h

Gradeability: 50%

Side stability: 30°

Water Tank: 12`000 lt - GRP

Foam Tank: 1`450 lt - GRP

Bodywork: Full GRP bodywork with integrated water and foam tank.

Water pump: Light alloy Godiva water pump, 6`000 lpm @ 10 bar.

Roof Turret: Akron ARFF roof turret - Air aspirated foam branchpipe - 6000 / 3000 lpm flow rate (selectable hi-low flow) - Electrically remote controlled from drive cabin c/w manual overrides from top roof - Position indicator in the drive cab.

Bumper Monitor: Firefox style 3463 - 950 lpm @ 7 bar

Foam mixing system: Automatic around the pump foam mixing system, electronically controlled - Foam mixing ratio selectable from 0 to 6% from cabin and side control panel.

Dry chemical powder system: 250 kg DCP system available on request.

Accessories: as per ICAO or on request

Ref #: 7338
