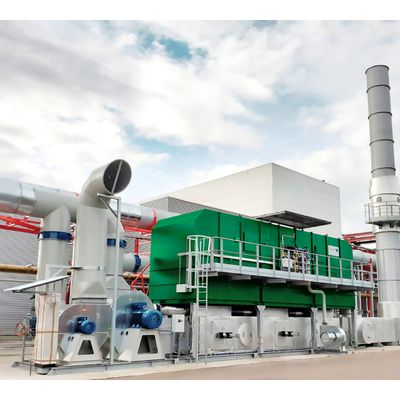

airprotech - RTO Regenerative Thermal Oxidizer
Regenerative thermal oxidizers RTO are specifically designed to destroy the pollutants from the process gas through thermal oxidation at high temperature, the chemical energy contained in the pollutants is transformed in thermic energy to sustain the combustion itself.
Design is focused to optimize the gas mix and distribution inside the combustion chamber, to achieve the required residence time for a complete oxidation process.
Regenerative thermal oxidizers exploit the capacity of a mass of inert material to accumulate cyclically and give back the heat generated by the combustion process. The efficacy of the thermal recovery can reach up to 96%, thus drastically reducing the consumption of the support fuel and consequently the plant operating costs.
airprotech supplies regenerative thermal oxidizers with different configuration accordingly to the specific application :
- RTO 2 chambers with optional compensation set
- RTO 3-5-7 chambers accordingly to the size and gas volume
