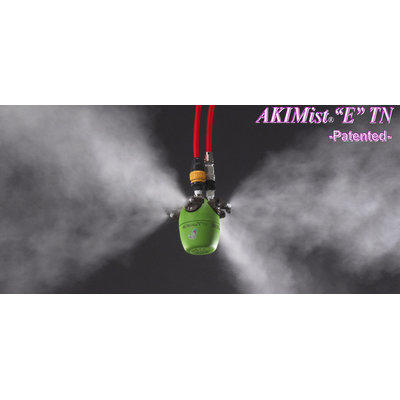

AKIMist - Model E TN -Dry Fog Humidifier in Titanium
We define Dry Fog as a very fine fog with a uniform, mean droplet diameter (mean fog droplet size) of 10 μm or less. Because Dry Fog’s exceedingly fine spray droplets remain intact without bursting when they come into contact with objects such as walls and people, they do not wet these impact surfaces. “Dry mist,” despite its similar name, has much larger droplets than Dry Fog and has no specified droplet diameter as part of its definition. Dry mist droplet sizes vary significantly by producer and product.
Most popular related searches
Features of AKIMist®“E” TN:
- Chemical-resistant titanium version, for spaying chemical solution.
- Materials used for the parts contacting with chemical solution are titanium (TB340), PP (polypropylene), PPS (polyphenylene sulfide) and FKM (tetrafluoroethylenepropylene rubber).
- Nozzle type 03C only made of Titanium (TB340), PPS and OPFW materials.
Same general features as AKIMist® “E”:
- Energy-saving humidifiers with pneumatic spray nozzles producing Dry Fog**.
- With world-leading technology, our AKIMist® “E” TN produces ultra-fine “non-wetting” Dry Fog, which does not wet the objects it touches.
- The running cost is one-fifth of a comparable steam humidification system.
- Spray capacity: 2.4 - 9.6 L/hr
- Mean droplet diameter: 7.5 μm (**)
- Power consumption: -
- Water pressure: -
- Air pressure: 0.3 MPa (ca. 3 bar)
- Air consumption: 29 - 116 L/min, Normal
The AKIMist®“E” TN has multiple applications:
- Disinfection, sterilization in food factories
- Disinfection, sterilization in hospitals/pharmaceutical plants
- Disinfection, deodorization in egg farms, livestock barns
