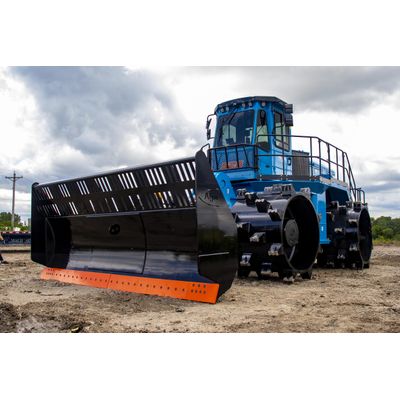

Aljon - ADV 525 Landfill Compactor

The Midsize Option That Doesn’t Compromise On Performance

Increase Your Compaction Density
The ADV525 is Aljon’s mid-sized model with weight ranges between 110,000lbs. & 115,000 lbs. with multiple wheel and cleat configurations for greater maneuverability. The ADV525 can effectively process and compact up to 1100 tons per day, will produce between 572 – 598 Pounds Per Linear Inch of compaction depending on the machine configuration, and is powered by a 543 HP, Volvo Penta engine requiring NO REGEN and NO DPF.

• Highest Horse Power ratings by class compared to competitors models
• Boasts a hydrostatic powertrain design instead of competitor powershift transmission
• Highest PLI ratings by class compared to competitors models
• Powered by Volvo Penta engines which require no DPF and no regen
• 100% American-made
• 100% Gradeability
• Best standard warranties in the industry
• No cleaner bars or wire cutters needed
• 100% Purpose Built for the landfill application
• Exclusive I-Beam Wheels

General Specs:

• Operating Weight Range: 108,000 lbs. – 117,602 lbs.
• Total Length: 356.6”
• Total Width w/ Straight Blade: 184.5”
• Total Height: 167.5”
• Wheel Base: 143.9”
• Ground Clearance: 28.5”
• Length w/out Dozer Blade: 275.4”
• Width w/out Dozer Blade: 171.7”
• Driving Speed Range: 0-5.5 mph

Wheel Specs:

• Width: 48” I-Beam Type
• Drum Diameter: 54”
• Number of Cleats Per Wheel: 24-32
• Height of Cleats: 8”

Dozer Blade Specs:

• Width w/ Cutting Edge: 182.5”
• Height: 78”
• Movement Above Ground Level: 59.2”
• Movement Below Ground Level: 14.3”

Power Pack Specs:

• Engine: EPA Tier 4 Final Volvo TAD1375VE
• Power Rating (SAE J1995): 543 HP
• Displacement: 12.78L
• Hydrostatic Transmission: All-wheel hydrostatic drive | 4 speed forward | 4 speeds reverse
• Fuel Tank: 215 gallons
• Def Tank: 18 gallons
• Service Brakes: All-wheel hydrodynamic | All-wheel spring applied, hydraulic release parking brake

Electrical

• Alarm, back-up
• Alternator, 150 amp
• Batteries, maintenance free (4-950CCA)
• Diagnostic Connector
• Electrical Converter 24V-12V
• Electrical System 24V
• Lighting System, 65 watt exterior halogen, 6F & 4R
• Heavy Duty Electric Starter

Guards

• Center joint / steering cylinders
• Charge air cooler, slide-out prescreen
• Engine enclosure doors, swing open for easy access
• Hydraulic oil cooler, slide-out prescreen
• Undercarriage, sealed, no service under the machine
• Window guard, see-through front

Operator Environment

• Air conditioner, 3 speeds, directional air vents front & rear
• Beverage holders (4)
• Blade control, electric over hydraulic, raise, lower, float
• Cab, pressurized & sound suppressed
• Right & left doors
• ROPS/FOPS
• AM/FM weather band radio, CD, MP3 port, speakers (4)
• 12V power ports (2)
• Coat hooks (2)
• Dome light, single florescent
• Fire extinguisher, 5lb ABC type
• Filtered fresh air intake
• Footrests integrated into lower dash console
• Gear selection display
• Glass (laminated, tinted, rubber mounted)
• Heater/defroster, 3 speeds, directional air vents front & rear
• Horn, electric
• Hour meter display
• Hydraulic steering, joystick control
• Mirrors, rearview (externally mounted, West Coast style)
• Monitoring system, 7" full color touch screen display
• Instrumentation, Digital gauges integrated into display:
• Engine coolant temperature
• Engine oil pressure
• Fuel level, electric sender
• Tachometer
• Hydraulic oil pressure
• Odometer
• Volt meter
• Instrumentation, Warning Indicators:
• Electrical system, low voltage, engine ECM
• Engine oil pressure, engine ECM
• Fuel filter status, engine ECM
• Hydraulic drive pressure
• Parking brake status
• System shutdown, amber & red warning lights
• Rear vision camera system, full color monitor in cab
• Seat, cloth, 6-way adjustable air ride
• Seat belt, retractable, 3"
• Storage rack for manuals
• Throttle lock capability
• Wet-Arm wipers / washer (front & rear)
• Intermittent front wiper / washer
• Single speed rear wiper / washer

• Full time, all-wheel hydrostatic drive
• NO differentials, torque converter, drive shaft or axles
• Ergonomic, fully equipped operator compartment
• Includes AM/FM Radio/CD & rear vision camera
• All component guarding included as standard equipment
• Sealed heavy duty undercarriage
• No service points are located under the machine
• Opening "belly pans" are not required
• No exposed bolts on undercarriage
• Stairways do not clock access to axle area
• Exclusive 5 year or 10,000 hour wire wrap damage warranty
• Standard 1 year or 2,000 hour total coverage warranty

Powertrain

• All-wheel hydrostatic drive, 4 speeds forward / 4 speeds reverse
• Brakes, all-wheel hydrodynamic
• Brakes, parking/emergency, all-wheel spring applied hydraulic release
• Cooling system:
• Charge air cooler, slide-out prescreen
• Hydraulic oil cooler, 6.5 aluminum fins per inch, slide-out prescreen
• Radiator, 6.5 aluminum fins per inch, slide-out prescreen
• Engine, EPA Tier 4 Final 503 HP
• VOLVO TAD1374VE
• Fan. cooling system, hydraulically driven
• automatically reversible with manual override
• Fuel priming pump, manual
• Heat shield between turbo and engine
• Pre-cleaner, engine air intake (Sy-Klone)
• Starting aid - air inlet preheater and engine block heater
• 70 Liter DEF Tank
• SCR Exhaust after-treatment
• Tier 4 technology with no active regeneration

Other Standard Equipment

• Cab pre-wired for CB installation, integrated antenna
• Manual access to all service points & compartments
• Oil sampling ports
• Steps, structural steel, left & right
• Striker bars, behind front wheels, behind rear wheels
• Tow hooks front & rear
• Vandalism protection caplocks, fuel and hydraulic tanks
• Wheels (48" coned type) 8" tall weld-on cleats
• Bulldozer blade, hydraulics & linkage
