Aljon - Model 400XL -Waste Baler

Load. Cycle. Stack. Repeat.

A Model of Efficiency

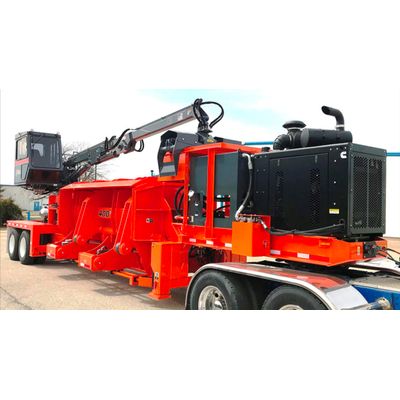

The Aljon 400XL is a rugged, productive, mobile scrap processing machine. The 400XL baler’s “clam shell” box design and large loading chamber make for fast efficient processing of bulky loose scrap and white goods as well as ferrous and non-ferrous light gauge material. Processed bales are formed into easy to handle 32 in x 20 in (813mm x 508mm) x variable bundles. The 400XL has all power needed to allow the operator to use the crane to sort material, stack bundles etc. during the automatic baling cycle with no slowdown.

• Proudly designed and built in the USA
• Operator friendly with safe and easy access to comfortable, high visibility operator cab
• Comprehensive service & parts inventory available for immediate shipment
• No regen on standard Volvo Penta Tier 4 Final diesel engine
• Options available to improve productivity
• Forms bale in middle of chamber for easy removal with lower lift from ground to bale chamber
• Onboard computer dashboard monitors baler productivity, machine, and engine functions
• Financing available at competitive rates
• Available options include remote control, auto lube, and window guard

(Nominal) Dimensions With Material Handler

• Length: 12.37 m / 40 ft. 6 in.
• Height: 4.1 m / 13 ft. 6 in.
• Width: 2.6 m / 8 ft. 5 in.
• Weight: 28,124 kg / 62,000 lbs

Open Chamber

• Length: 3.65 m / 12.3 ft.
• Width: 2.4 m / 8 ft.
• Height “L”: 1.1 m / 3.6 ft.

Bale Size

• Length: Variable
• Width: 0.81 m / 32 in.
• Height: 0.5 m / 20 in.

Production

• Scrap Metal (avg): Up to 12 tons per hour

Tank Capacities

• Diesel Fuel: 340 liters / 90 gallons
• Hydraulic Fluid: 692 liters / 183 gallons

Power Unit

• Volvo Penta Tier 4 Final
• 215 HP for standard unit with crane; 185 HP for craneless models
• 150 HP Electric Motor with VFD Starting System
